Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Engine
by
Drive shaft
Crankcase
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Stud bolt
AP8577003
Not Available
2
screw
AP8550283
Not Available
3
Nut
AP8580064
Not Available
4
Silent-block
AP8220617
Not Available
5
Gasket
AP8553003
Not Available
6
Cover M12x1,5
AP8560014
Not Available
7
Nozzle
AP8560017
Not Available
8
Pin d.9,5 h=15
AP8550107
Not Available
9
screw
AP8560009
Not Available
10
plate
AP8580167
Not Available
11
Crankcase assy
8479575001
Not Available
11
Crankcase assy cat2
8479575002
Not Available
12
Locating dowel
AP8551015
Not Available
13
Oil level rod cpl.
AP8550586
Not Available
14
O-ring
AP8550334
Not Available
15
Valve spring
AP8580087
Not Available
16
Oil pressure valve
AP8560142
Not Available
17
Transm.oil unload screw
AP8550361
Not Available
18
Alloy washer
AP8550304
Not Available
19
Intake oil cup
AP8575007
Not Available
20
Gasket
AP8577008
Not Available
21
Filter support insert
AP8268523
Not Available
22
Gasket
AP8550117
Not Available
23
Decal "AGIP"
852029
Not Available

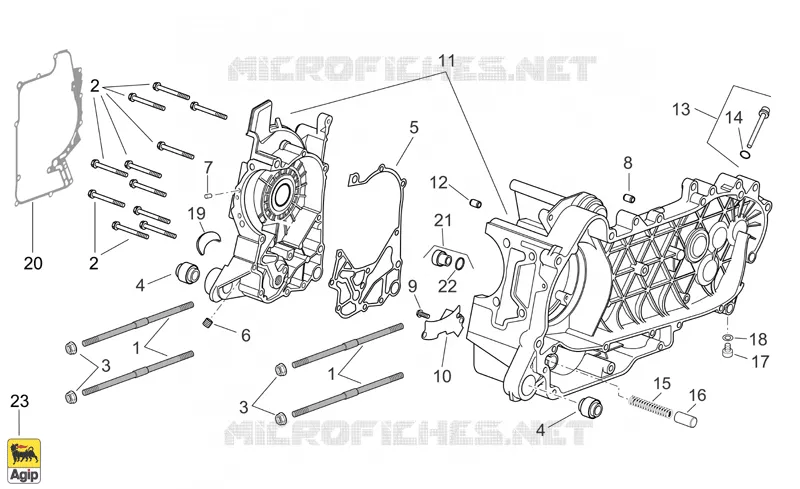

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
