Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Front brake caliper
Front wheel
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Front wheel, grey
AP8128129
Not Available
2
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
3
Spacer
AP8125896
Not Available
4
Bearing 15x42x13
AP8125812
Not Available
5
Oil seal
AP8120621
Not Available
6
Front brake disc d.260
AP8113697
£101,09 Unit Price incl. VAT
7
Hex screw M8x25
AP8150079
£0,68 Unit Price incl. VAT
8
Front wheel spindle
851796
£44,70 Unit Price incl. VAT
9
Front wheel spacer
851798
£7,79 Unit Price incl. VAT
10
Front/rear tyre 110/70-16"
852445
Not Available
11
Speedometer sensor cpl.
AP8127668
Not Available
12
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
13
Low self-locking nut
AP8150451
£1,66 Unit Price incl. VAT
14
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
15
Hose clamp
AP8104606
£1,70 Unit Price incl. VAT
16
Black hose 98x2*
AP8120422
£1,49 Unit Price incl. VAT
17
Sensor support
AP8154092
£10,02 Unit Price incl. VAT
18
Front wheel spacer
851797
Not Available
19
Brake caliper cover
AP8179834
Not Available
20
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
21
Hub Cover
AP8125955
Not Available
22
Hex socket screw
AP8152057
£1,01 Unit Price incl. VAT

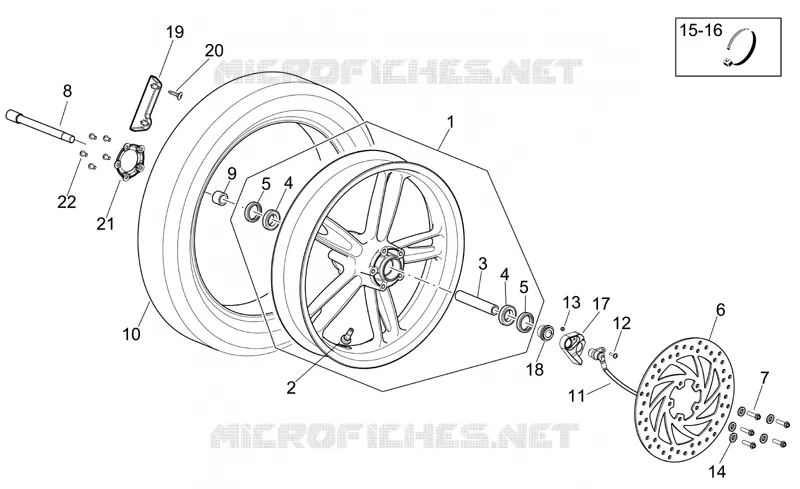

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
