1
Engine displacement
250
2
Model
SCARABEO
3
Year
2007
4
Trim
Scarabeo Light E3
5
Parts Catalog
Ignition unit
6
Parts Diagram
Parts Catalog
Variator cover
by
Acc. - Windshields

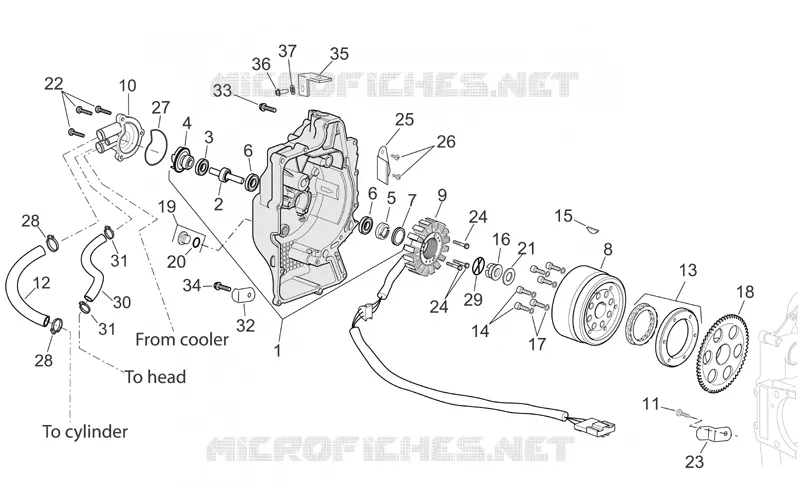

Ignition unit
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
30
31
31
32
33
34
35
36
37
1
Flywheel cover cpl.
AP8176320
Not Available
2
Water pump shaft assy.
AP8176393
Not Available
3
Gasket ring
AP8590055
Not Available
4
Fan
AP8276091
Not Available
5
Pump impeller drive key
AP8577014
Not Available
6
Bearing 28x8x9
AP8577012
Not Available
7
Gasket ring
AP8577013
Not Available
8
Rotor cpl.
AP8176334
Not Available
9
Stator cpl.
AP8176335
Not Available
10
Water pump cover
AP8176287
Not Available
11
screw M6x14
AP8577048
Not Available
12
Pump-cylinder hose
AP8580277
Not Available
13
Complete freewheel
8477975
£120,52 Unit Price incl. VAT
14
Hex socket screw M6x24
847679
Not Available
15
Transmission key
AP8560006
Not Available
16
Special nut
AP8577043
Not Available
17
Break washer
AP8550487
Not Available
18
Chain ring
AP8570018
Not Available
19
Cover
AP8577015
Not Available
20
Gasket
AP8550417
Not Available
21
Plain washer
AP8577044
Not Available
22
Screw
AP8551060
Not Available
23
plate
AP8577049
Not Available
24
screw M6x30
AP8560011
Not Available
25
plate
AP8577010
Not Available
26
screw
AP8560009
Not Available
27
O-ring
AP8580084
Not Available
28
Hose clamp
AP8580217
Not Available
29
Drive key
AP8577037
Not Available
30
By-pass pipe
AP8176330
Not Available
31
Hose clamp
CM001924
£5,17 Unit Price incl. VAT
32
Plate
848109
£1,52 Unit Price incl. VAT
33
screw M6x35
AP8550079
Not Available
34
screw
AP8176319
Not Available
35
Support bracket
AP8154085
Not Available
36
Screw w/ flange
AP8551045
Not Available
37
Washer
012528
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
