1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Touring ABS
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Exhaust pipe
by
Cylinder head - valves
Throttle body
1
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
16
16
16
17
18
19
20
20
20
20
20
20
21
21
21
21
22
23
24
25
1
Induction joint gasket
887979
£13,80 Unit Price incl. VAT
2
Gasket
872264
£7,12 Unit Price incl. VAT
3
Injector
B063442
£100,82 Unit Price incl. VAT
4
Throttle body
872230
Not Available
5
Throttle body trombone
B063333
£13,36 Unit Price incl. VAT
6
Air temp. Sensor
887015
£152,92 Unit Price incl. VAT
7
Throttle body hose
887808
£18,25 Unit Price incl. VAT
8
Union pipe SX
8871714
£149,46 Unit Price incl. VAT
9
Union pipe DX
8871724
£149,46 Unit Price incl. VAT
10
LH clamp
B063160
£33,70 Unit Price incl. VAT
11
RH clamp
B063161
£33,70 Unit Price incl. VAT
12
T bushing
887282
£5,08 Unit Price incl. VAT
13
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
14
Screw w/ flange M6x60
B016425
£1,62 Unit Price incl. VAT
15
Hex socket screw
B017633
£2,48 Unit Price incl. VAT
16
Hose clamp
857306
£10,54 Unit Price incl. VAT
17
Compensator volume
2A000030
£407,93 Unit Price incl. VAT
18
LH protection
B063158
£140,15 Unit Price incl. VAT
19
RH protection
B063159
£140,15 Unit Price incl. VAT
20
Hex socket screw M5x15
976614
£15,76 Unit Price incl. VAT
21
Spring plate M5
248419
£2,00 Unit Price incl. VAT
22
Support bracket
886869
£66,97 Unit Price incl. VAT
23
Silent-block
GU93222023
£15,01 Unit Price incl. VAT
24
Hex socket screw
B017633
£2,48 Unit Price incl. VAT
25
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT

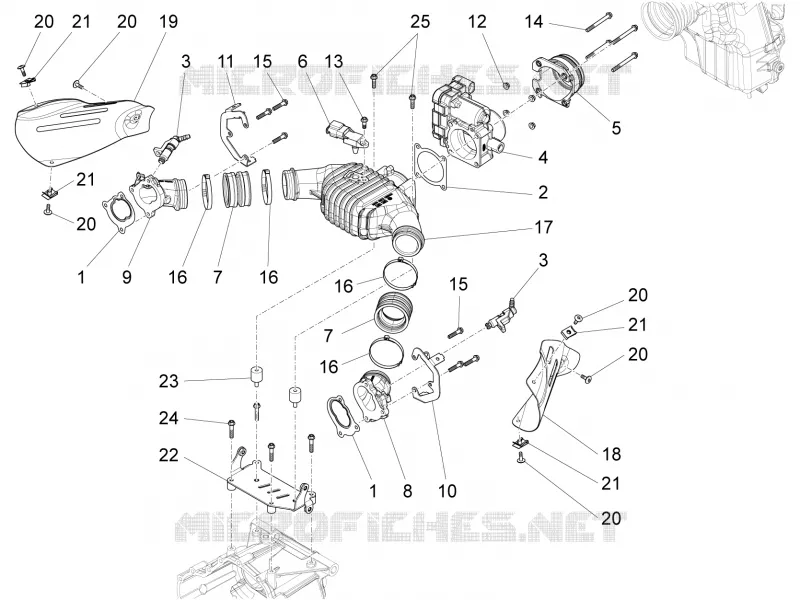

Find the detailed Throttle body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
