1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Touring ABS
5
Parts Catalog
Rear lights
6
Parts Diagram
Parts Catalog
Foot rests
by
Protection
Rear lights
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
1
Rh rear light USA-CND
887536
£146,10 Unit Price incl. VAT
2
Lh rear light USA-CND
887537
£146,82 Unit Price incl. VAT
3
Special screw
976591
£7,78 Unit Price incl. VAT
4
Rear reflector, red
AP8124718
£16,44 Unit Price incl. VAT
5
Washer
AP8150501
£2,48 Unit Price incl. VAT
6
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
7
Number-plate light
AP8127098
Not Available
8
Number-plate light
B063432
£11,92 Unit Price incl. VAT
9
Lamp 12V-5W
292022
Not Available
10
Screw 4,2x16
AP8150522
£3,86 Unit Price incl. VAT
11
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
12
Plate light support
B063454
£10,45 Unit Price incl. VAT
13
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT

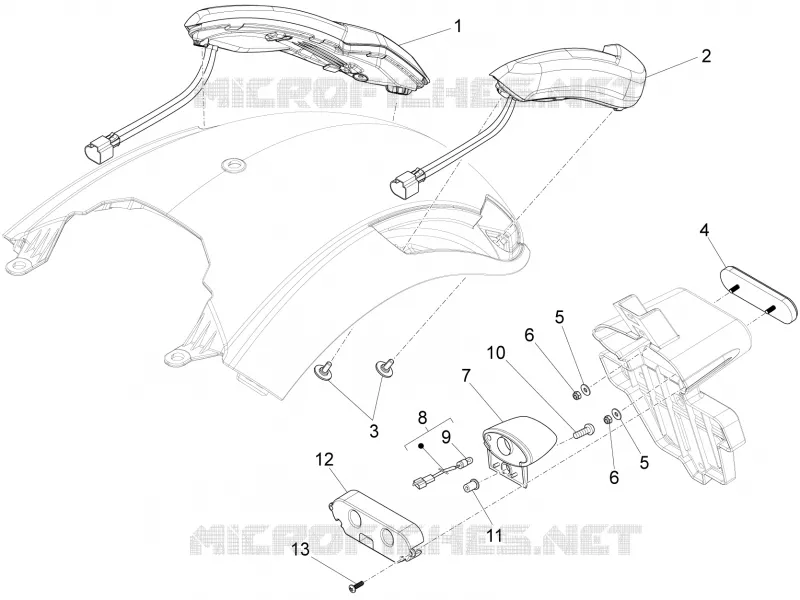

Find the detailed Rear lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
