1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Touring ABS
5
Parts Catalog
Protection
6
Parts Diagram
Parts Catalog
Rear lights
by
Gear box - Gear assembly
Protection
1
2
3
3
3
4
4
4
5
5
5
5
6
6
7
7
8
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
20
20
21
22
1
LH front bumper
B063577
£513,37 Unit Price incl. VAT
2
RH front bumper
B063578
£527,45 Unit Price incl. VAT
3
Spacer
B063583
£10,44 Unit Price incl. VAT
4
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
5
Washer
GU95129240
£3,78 Unit Price incl. VAT
6
Low self-locking nut M12*
AP8150432
£2,18 Unit Price incl. VAT
7
Hex socket screw M12x70
GU98690670
£9,47 Unit Price incl. VAT
8
Screw w/ flange M10x1,25
AP8150494
£13,28 Unit Price incl. VAT
9
Fender DX
B063626
£641,28 Unit Price incl. VAT
10
Fender SX
B063625
£641,28 Unit Price incl. VAT
11
Screw w/ flange M8x50
AP8152292
£1,94 Unit Price incl. VAT
12
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
13
Screw w/ flange
AP8152294
£1,88 Unit Price incl. VAT
14
Front grille
B063902
£16,73 Unit Price incl. VAT
15
Rivet, female
AP8144616
£3,20 Unit Price incl. VAT
16
Bracket
B064001
£15,95 Unit Price incl. VAT
17
Rivet, male
AP8144563
£3,10 Unit Price incl. VAT
18
LH cover
B063717
£154,37 Unit Price incl. VAT
19
RH cover
B063716
£154,37 Unit Price incl. VAT
20
Hex socket screw M5x9
AP8150500
£2,18 Unit Price incl. VAT
21
Spring plate M5
248419
£2,00 Unit Price incl. VAT
22
Gasket PVC
GU00823931080
£10,62 Unit Price incl. VAT

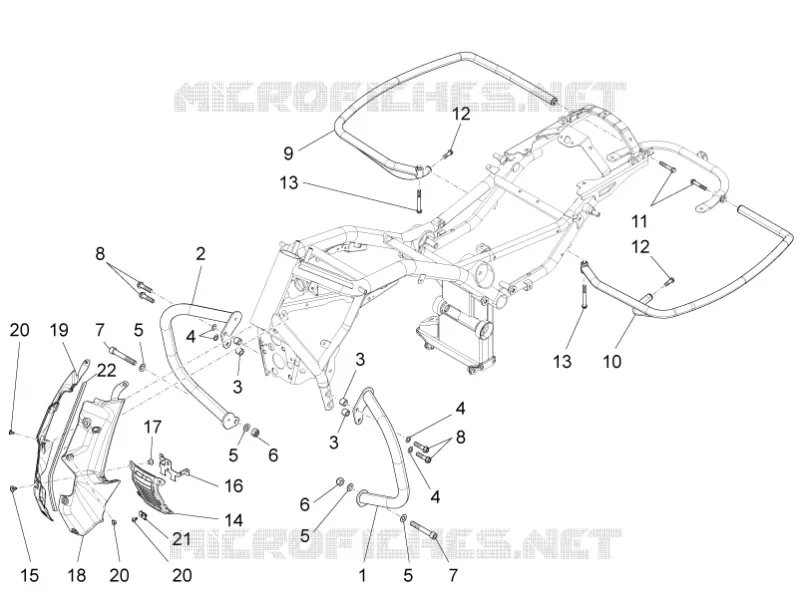

Find the detailed Protection MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
