1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Touring ABS
5
Parts Catalog
Windshield
6
Parts Diagram
Parts Catalog
Saddle compartment
by
Engine-Completing part-Lever
Windshield
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
16
16
1
Left windshield support
B063792
£118,55 Unit Price incl. VAT
2
Left windshield support
B063791
£118,55 Unit Price incl. VAT
3
Windscreen support
B063790
£270,19 Unit Price incl. VAT
4
Windscreen
B063721
£736,12 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
6
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
7
Cap nut M6x1
GU92787006
£7,98 Unit Price incl. VAT
8
Rubber spacer *
AP8220241
£4,54 Unit Price incl. VAT
9
Bushing
GU03578432
£15,47 Unit Price incl. VAT
10
Cover
B063831
£2,48 Unit Price incl. VAT
11
Bush 18x6,5x11,5
B063830
£15,76 Unit Price incl. VAT
12
Front frame
B063984
£648,71 Unit Price incl. VAT
13
Hex socket screw M6x25
GU98370625
£5,23 Unit Price incl. VAT
14
Screw M6x40
B064320
£1,12 Unit Price incl. VAT
15
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
16
Rubber spacer 8x18
GU91551167
£1,43 Unit Price incl. VAT

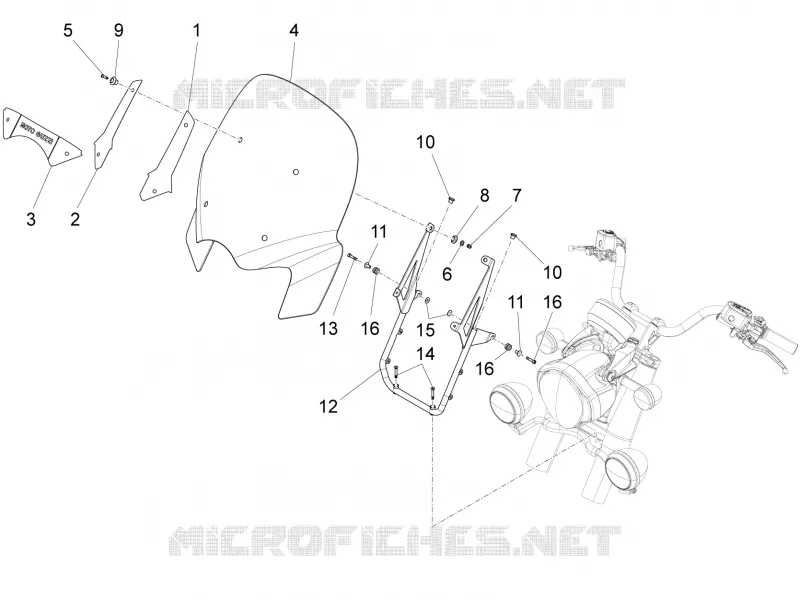

Find the detailed Windshield MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
