1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2015
4
Trim
California Touring ABS
5
Parts Catalog
Gear box / Selector / Shift cam
6
Parts Diagram
Parts Catalog
LH cylinder timing system I
by
Central body
Gear box / Selector / Shift cam
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
1
Transmission, assy
9769975
£3 276,85 Unit Price incl. VAT
2
Clutch housing, grey
B0630754
£297,53 Unit Price incl. VAT
3
Screw w/ flange M6x55
GU97202355
£2,47 Unit Price incl. VAT
4
Cover
GU93180220
£3,68 Unit Price incl. VAT
5
Transmission cage
8868655
£652,04 Unit Price incl. VAT
6
Washer 18,25x24x1
GU18144350
£6,66 Unit Price incl. VAT
7
Oil plug M18x1,5
GU95980319
£13,40 Unit Price incl. VAT
8
Breather plug
GU05204930
£20,78 Unit Price incl. VAT
9
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
10
Fuel pipe 5,5x10
AP8120952
Not Available
11
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
12
Gasket ring 14x24x7
GU90401424
£34,70 Unit Price incl. VAT
13
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
14
Bushing 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
15
Shift cam cpl.
886875
£132,30 Unit Price incl. VAT
16
Pin
GU05234631
£5,16 Unit Price incl. VAT
17
Spacer
GU05235531
£56,64 Unit Price incl. VAT
18
Circlip
GU90271022
£1,42 Unit Price incl. VAT
19
Ball bearing 17x35x10
GU92201117
£13,33 Unit Price incl. VAT
20
Ball bearing 25x42x9
GU92201025
£17,98 Unit Price incl. VAT
21
Preselection complete
GU05236231
£116,80 Unit Price incl. VAT
22
Spring
GU05238231
£5,18 Unit Price incl. VAT
23
Bushing
GU05238431
£15,12 Unit Price incl. VAT
24
Index assy. lever
B064112
£12,23 Unit Price incl. VAT
25
Index spring
B064113
£3,97 Unit Price incl. VAT
26
Spacer
GU05234230
£9,40 Unit Price incl. VAT
27
Fixing pin
B063905
£15,76 Unit Price incl. VAT
28
Spring
B063956
£33,08 Unit Price incl. VAT
29
Spacer
GU05238131
£13,40 Unit Price incl. VAT
30
Circlip
GU90271014
£0,89 Unit Price incl. VAT
31
Fifth wheel
GU05239330
£1,93 Unit Price incl. VAT
32
Fork 1a-3a
GU05230531
£167,68 Unit Price incl. VAT
33
Fork shaft
GU05232431
£31,44 Unit Price incl. VAT
34
Fork 5a-6a
GU05232631
£167,68 Unit Price incl. VAT
35
Fork 2a-4a
GU05230831
£170,02 Unit Price incl. VAT
36
Circlip
GU90353014
£7,98 Unit Price incl. VAT
37
Gear position sensor
857265
£157,74 Unit Price incl. VAT
38
O-ring
857494
£7,85 Unit Price incl. VAT
39
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT

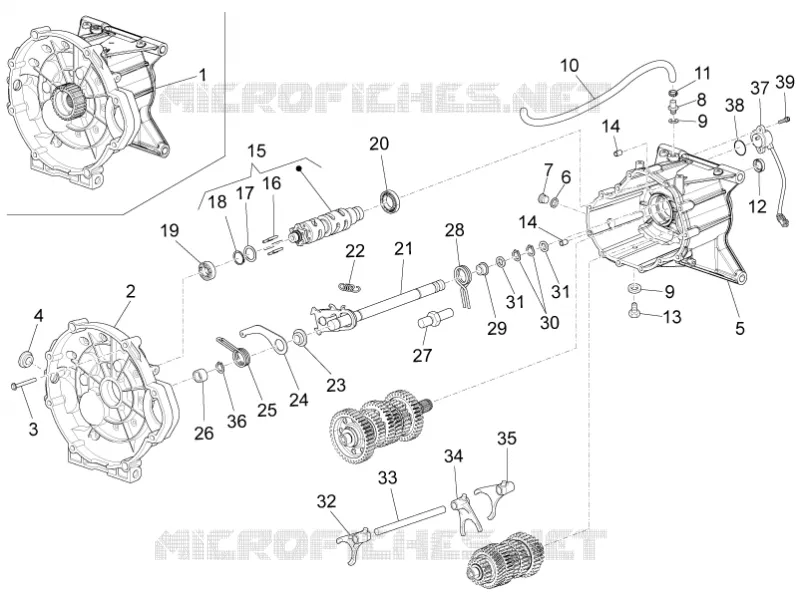

Find the detailed Gear box / Selector / Shift cam MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
