Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Oil pump
by
Handlebar - Dashboard
Air box
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Air filter
AP8202249
Not Available
2
Air box cpl.
AP8268480
Not Available
2
Air box cpl.
AP8258707
Not Available
3
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
4
Corps filtre;
AP8249936
£19,70 Unit Price incl. VAT
5
Filter housing base
AP8258728
Not Available
6
Joint
AP8220616
£4,87 Unit Price incl. VAT
7
Tuyau d'aspiration
AP8144438
£59,24 Unit Price incl. VAT
8
Fuel pipe 5,5x10
AP8120952
Not Available
9
Collier
AP8102378
£4,01 Unit Price incl. VAT
10
Collier
AP8101595
£3,97 Unit Price incl. VAT
11
Orifice
AP8258708
Not Available
11
Orifice
AP8202448
Not Available
12
Carburettor-air box hose
AP8220625
Not Available
12
Carburettor-air box hose
AP8220583
Not Available
13
Clip M6
AP8102376
Not Available
14
Guide-câble
AP8201808
£3,25 Unit Price incl. VAT
15
Collier Durite
AP8201799
£17,60 Unit Price incl. VAT
16
Collier serr. Tube
AP8104502
£6,26 Unit Price incl. VAT
16
Hose clamp
AP8102060
Not Available
17
Collier serr. Tube;
AP8104097
£3,42 Unit Price incl. VAT
18
Douille
AP8121032
£3,88 Unit Price incl. VAT
19
Douille en T
AP8121795
£2,63 Unit Price incl. VAT
20
Rallonge manchon aspiration;
AP8258836
£10,44 Unit Price incl. VAT
21
Collecteur aspiration
AP8220611
£48,86 Unit Price incl. VAT

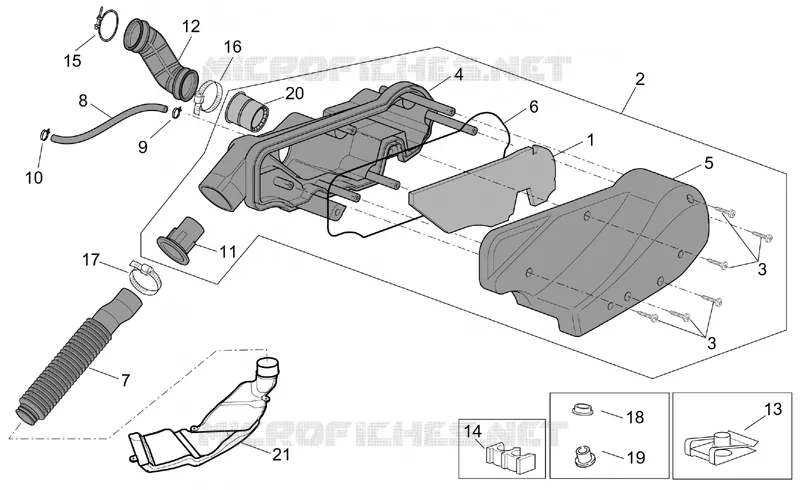

Find the detailed Air box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
