Engine displacement
50
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Exhaust pipe
6
Parts Diagram
Parts Catalog
Decal op.handbooks and plate set
by
Variator cover
Exhaust pipe
1
2
3
3
4
5
6
7
8
8
9
9
10
11
12
12
13
1
Silencer
AP8219558
Not Available
1
Silencer
AP8219622
Not Available
2
Clip M6
AP8102376
Not Available
3
Nut
AP8221344
Not Available
4
Nylonl exhaust pipe prot.
AP8219517
Not Available
5
Rondelle isolante
AP8221297
£1,50 Unit Price incl. VAT
6
Washer 18x6,4x1,5
AP8221339
Not Available
7
Vis
AP8224470
£1,27 Unit Price incl. VAT
8
Rondelle
AP8150017
£1,88 Unit Price incl. VAT
9
"Douille en ""T"""
AP8221340
£5,27 Unit Price incl. VAT
10
"Douille en ""T"""
AP8221341
£5,87 Unit Price incl. VAT
11
Vis bride
AP8152293
£1,32 Unit Price incl. VAT
12
Rondelle élastique courbe
AP8150376
£1,76 Unit Price incl. VAT
13
Joint pot d'échappement
AP8219612
£7,86 Unit Price incl. VAT

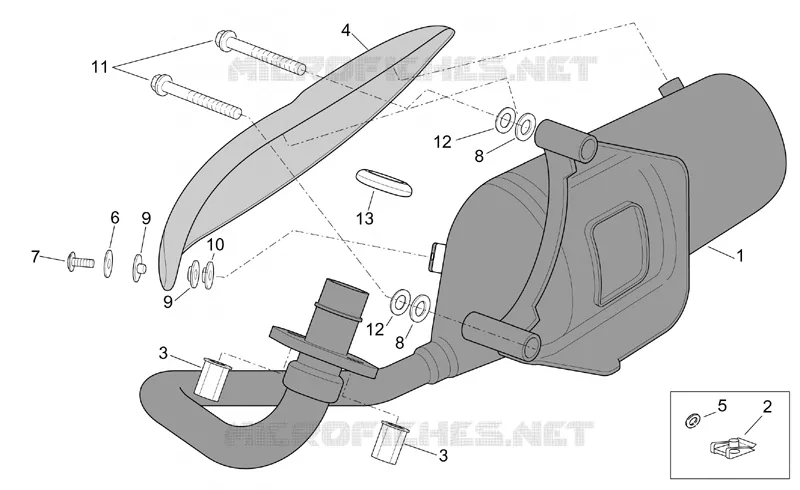

Find the detailed Exhaust pipe MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
