Engine displacement
50
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
by
Air box
Oil pump
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
19
20
20
20
21
22
23
24
25
25
26
27
28
29
30
1
Oil bulhead
AP8551094
Not Available
2
Screw w/ flange
AP8551045
Not Available
3
Gasket
AP8550417
Not Available
4
Oil load plug
AP8550525
Not Available
5
Oil unload plug
AP8550527
Not Available
6
O-ring
AP8550337
Not Available
7
Chain tensioner assy.
AP8560059
Not Available
8
Chain tensioner gasket
AP8550429
Not Available
9
Upper chain guide plate
AP8551059
Not Available
10
Hex screw
AP8550560
Not Available
11
Spacer
AP8550395
Not Available
12
Timing system chain guide
AP8551058
Not Available
13
Camshaft chain
AP8551071
Not Available
14
Carter-oil pump gasket
AP8550425
Not Available
15
Oil pump assy.
AP8551087
Not Available
16
Screw w/ flange
AP8551029
Not Available
17
Oil pump gear
AP8550380
Not Available
18
Oil pump chain
AP8550358
Not Available
19
Belleville spring
AP8550439
Not Available
20
Screw w/ flange
AP8550556
Not Available
21
Oil seal washer
AP8550486
Not Available
22
Oil pump control pinion
AP8550452
Not Available
23
Oil pump chain drift
AP8550522
Not Available
24
Motor oil cup
AP8550377
Not Available
24
Motor oil cup
AP8570127
Not Available
25
Screw w/ flange
AP8113789
Not Available
26
O-ring
AP8550333
Not Available
27
Timing system cover cpl.
AP8550372
Not Available
28
Oil seal
AP8550446
Not Available
29
Timing system chain pinion cpl
AP8276039
Not Available
29
Timing system chain pinion cpl
AP8550451
Not Available
30
Gasket
AP8570103
Not Available

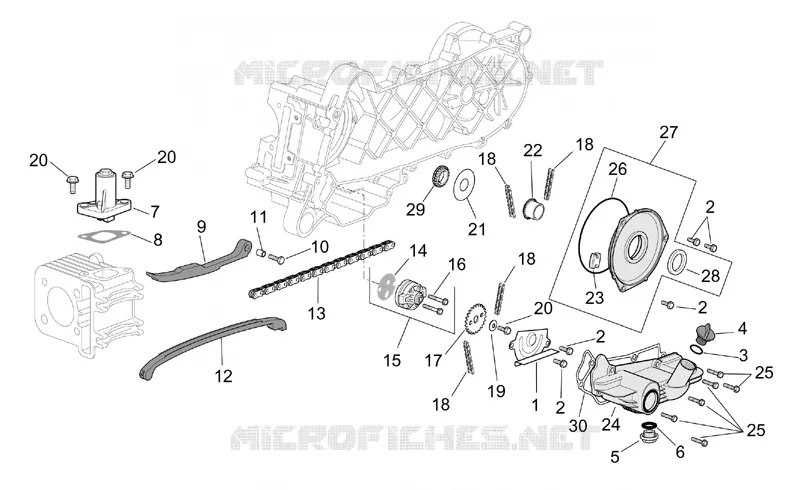

Find the detailed Oil pump MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
