Engine displacement
50
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Cylinder head - valves
6
Parts Diagram
Parts Catalog
Variator cover
by
Rear wheel - drum brake
Cylinder head - valves
1
2
2
3
3
4
4
4
4
5
6
7
8
9
10
11
1
Valve gasket ring
AP8550326
Not Available
2
Cup
AP8551080
Not Available
3
Spring
AP8551084
Not Available
3
Spring
AP8570126
Not Available
4
Half-cone
AP8550508
Not Available
5
Cup
AP8550493
Not Available
6
Hex socket screw M6x80
AP8551027
Not Available
7
Intake valve
AP8570107
Not Available
8
Exhaust valve
AP8570108
Not Available
9
Pin d.9,5 h=15
AP8550107
Not Available
10
Cylinder head gasket 0,3
AP8276051
Not Available
10
Cylinder head gasket 0,3
AP8570114
Not Available
10
Cylinder head gasket 0,2
AP8276050
Not Available
11
Cylinder head assy.
AP8570099
Not Available
11
Cylinder head assy.
AP8570125
Not Available

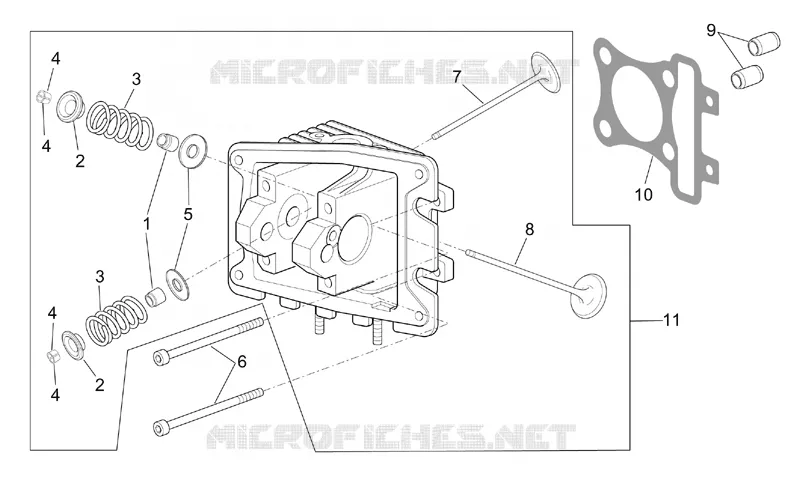

Find the detailed Cylinder head - valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
