Engine displacement
50
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo 4T 2V E2
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Tank
by
Front fork
Drive shaft
1
2
3
1
Crankshaft cpl.
AP8570104
Not Available
1
Crankshaft cpl.
AP8276038
Not Available
2
Bearing 17x42x13
AP8551078
Not Available
3
Bearing 25x56x12
AP8570113
Not Available
3
Bearing 20x60x13
AP8551099
Not Available

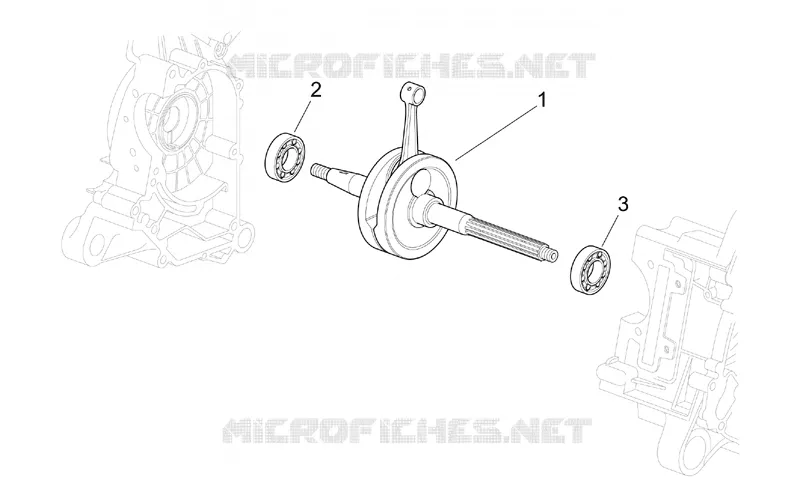

Find the detailed Drive shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
