1
Engine displacement
1100
2
Model
SPORT
3
Year
1994
4
Trim
Sport Carburatori 1100
5
Parts Catalog
Tank
6
Parts Diagram
Parts Catalog
Saddles
by
STEERING
Tank
26
25
24
22
21
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
2
1
1
1
1
1
1
1
Reservoir carburant
GU37100207
Not Available
1
Reservoir carburant
GU37100211
Not Available
1
Reservoir carburant
GU37100212
Not Available
1
Reservoir carburant
GU371002051
Not Available
1
Reservoir carburant
GU37100208
Not Available
1
Reservoir carburant
GU37100206
Not Available
2
Fuel tank decal
GU19917835
Not Available
2
"MotoGuzzi" dec.
GU29917853
£43,75 Unit Price incl. VAT
3
Fuel filler cap
GU30104100
Not Available
4
Ring nut
GU30102300
£35,46 Unit Price incl. VAT
5
screw
GU98250512
Not Available
6
Gasket
GU30101700
£5,96 Unit Price incl. VAT
7
pipe
GU30104300
£12,17 Unit Price incl. VAT
8
Rubber spacer
GU66103415
£16,24 Unit Price incl. VAT
9
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
10
screw
GU98622420
Not Available
11
T bush
GU30103500
Not Available
12
Rubber spacer
GU30107100
£4,84 Unit Price incl. VAT
13
Washer
GU95000206
£1,02 Unit Price incl. VAT
14
screw
GU98052398
£2,33 Unit Price incl. VAT
15
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
16
Fuel tank+Fuel sensor
GU30103000
£29,95 Unit Price incl. VAT
17
Fuel solenoid valve
GU37105305
Not Available
18
Fuel pipe
GU29106500
Not Available
19
Hose clamp
GU61108400
£0,72 Unit Price incl. VAT
20
Lock kit
GU30736800
Not Available
21
Décalco série
GU37923306
Not Available
21
Décalco série
GU37923305
Not Available
22
Decal "Attention"
GU30944300
£13,50 Unit Price incl. VAT
24
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
25
Gasket PVC
GU00823931080
£10,62 Unit Price incl. VAT
26
Sticker
GU29995735
£15,02 Unit Price incl. VAT

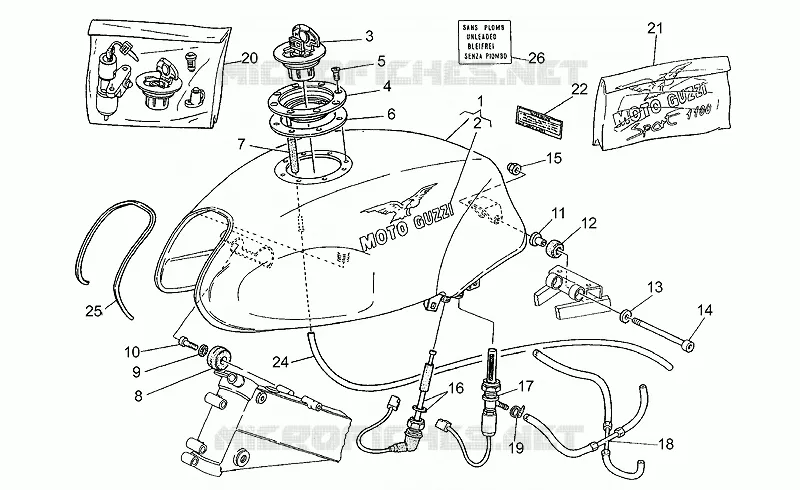

Find the detailed Tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
