Engine displacement
1100
2
Model
SPORT
3
Year
1994
4
Trim
Sport Carburatori 1100
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
SWINGARM
by
HANDLEBAR - CONTROLS
Electrical system
30
30
29
28
27
26
25
24
23
23
22
21
20
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
1
Circuit electrique
GU37747105
Not Available
2
Relais support
GU30732400
£12,34 Unit Price incl. VAT
3
Maintenance
GU30756100
£15,38 Unit Price incl. VAT
4
Dashboard cable
GU30747200
Not Available
5
Taillight wiring harn.
GU30747300
Not Available
6
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
7
Flasher unit
GU17750520
Not Available
8
Fuse holder box
GU37743005
£62,36 Unit Price incl. VAT
9
Fuse 15A
GU28742560
Not Available
10
Décalcomanie "schema fusibili"
GU37945005
Not Available
11
Hex socket screw
GU98622210
£1,02 Unit Price incl. VAT
12
Washer
GU95004205
£1,13 Unit Price incl. VAT
13
Batterie 12V-9Ah
GU37704505
Not Available
14
Partition plane
GU37705305
Not Available
15
Plaque
GU37707005
Not Available
16
Battery holder
GU37418205
Not Available
17
Plate
GU37419405
Not Available
18
screw
GU98054314
£0,49 Unit Price incl. VAT
19
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
20
Washer 6,4x10x0,7
GU14217901
Not Available
21
Elastique fix. batterie
GU37705505
Not Available
22
Wire
GU30748400
Not Available
23
Cap
GU30759600
£3,64 Unit Price incl. VAT
24
Ground-battery lead
GU28747960
£52,76 Unit Price incl. VAT
25
Câblage batterie
GU37734305
Not Available
26
Câblage batterie
GU37734805
Not Available
27
Capuchon
GU12703000
Not Available
28
screw
GU98054314
£0,49 Unit Price incl. VAT
29
Cable
GU37748405
Not Available
30
Hose clamp 3,6x375
GU93304390
£2,06 Unit Price incl. VAT
30
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT

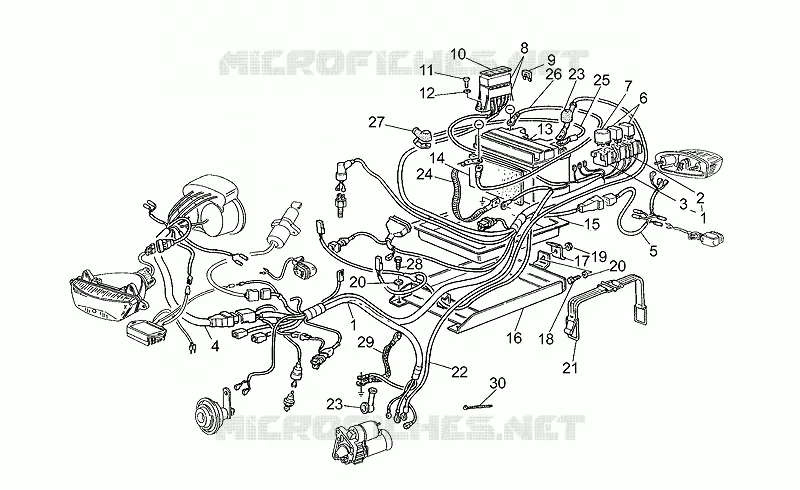

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
