1
Engine displacement
1100
2
Model
SPORT
3
Year
1994
4
Trim
Sport Carburatori 1100
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Taillight
by
Front fork
Air filter
24
24
23
29
29
28
27
26
25
25
25
24
24
22
21
20
19
18
18
17
13
12
11
10
9
8
7
6
4
3
2
1
1
16
15
5
1
Corps filtre
GU37114005
£293,62 Unit Price incl. VAT
2
Air filter
GU30113600
£22,42 Unit Price incl. VAT
3
Air filter cover
GU37113405
Not Available
4
Conduite d'aspiration D+G
GU37114405
Not Available
5
Collier
GU37114805
Not Available
6
Hose clamp 3,6x375
GU93304390
£2,06 Unit Price incl. VAT
7
Joint
GU29115860
£17,53 Unit Price incl. VAT
8
Gasket
GU90714053
£5,98 Unit Price incl. VAT
9
Écrou
GU92607205
Not Available
10
Breather pipe
GU00823942090
Not Available
11
screw
GU98052325
£0,56 Unit Price incl. VAT
12
Washer
GU95000206
£1,02 Unit Price incl. VAT
13
Spacer
GU91180721
£5,05 Unit Price incl. VAT
14
Vibration-damping rubber
GU17489645
£1,88 Unit Price incl. VAT
15
Bored screw
GU95990084
£39,22 Unit Price incl. VAT
16
Gasket
GU10154200
£5,08 Unit Price incl. VAT
17
Joint
GU30107401
£52,03 Unit Price incl. VAT
18
Hose clamp
GU93305017
£10,24 Unit Price incl. VAT
19
Durit d'essence
GU00823941078
Not Available
20
Tuyau
GU37116905
£89,09 Unit Price incl. VAT
21
screw
GU98610365
Not Available
22
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
23
Breather pipe
GU37116305
Not Available
24
Hose clamp D9
GU61108500
£0,96 Unit Price incl. VAT
25
pipe SAE30 R73/16"
GU00823956050
£22,76 Unit Price incl. VAT
26
3-way union
GU29106660
£10,33 Unit Price incl. VAT
27
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
28
Gasket
GU37111705
£1,00 Unit Price incl. VAT
29
Washer 6,15x11x0,8
GU95004206
Not Available

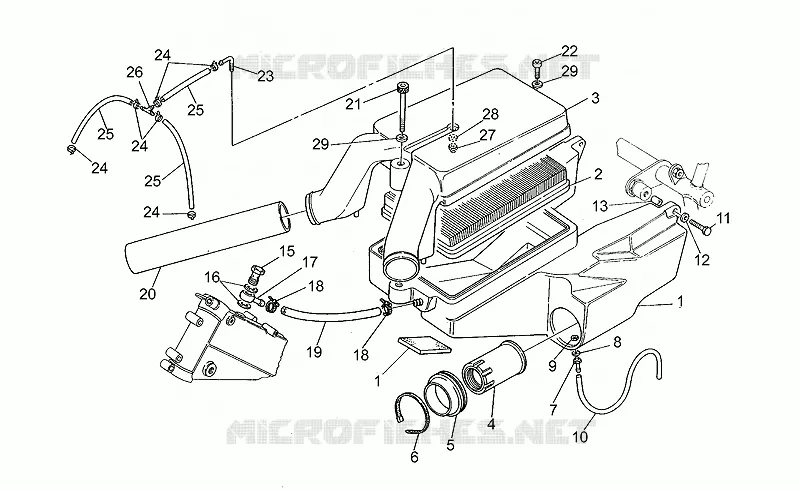

Find the detailed Air filter MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
