Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Air filter
by
SWINGARM
Front fork
34
33
32
31
30
29
29
29
28
27
26
26
26
25
25
24
24
23
23
22
22
21
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
6
5
4
3
2
2
1
1
Lower plate
GU30494000
£384,05 Unit Price incl. VAT
2
screw
GU98622430
£1,58 Unit Price incl. VAT
3
Upper plate
GU30493100
Not Available
4
Plug
GU30513400
£44,71 Unit Price incl. VAT
5
Screw complete
GU37530508
Not Available
6
Adjuster unit
GU37530509
Not Available
6
Adj.min.eng.speed knob
GU37530510
Not Available
7
Washer
GU30530505
Not Available
8
Nut
GU30530506
Not Available
9
Plug cpl.
GU30530507
Not Available
10
O-ring
GU30530508
Not Available
11
Adjuster unit
GU37530511
Not Available
12
Nut
GU37530507
Not Available
13
Spacer
GU30530523
Not Available
14
Spring centering shoe
GU30530524
Not Available
15
Stop ring
GU37530505
Not Available
16
pipe
GU30530514
Not Available
17
Fork spring
GU30526600
Not Available
18
Sleeve
GU30525400
Not Available
19
Bushing
GU30530515
Not Available
20
Shock absorber, RH
GU37530512
£701,58 Unit Price incl. VAT
21
Dust cover ring
GU30524500
Not Available
22
Stop ring
GU30530518
Not Available
23
Oil seal
GU30530502
Not Available
24
Cup
GU37530506
Not Available
25
Bushing
GU30530520
£31,90 Unit Price incl. VAT
26
Fourreau D
GU37522507
£565,10 Unit Price incl. VAT
26
Fourreau D
GU37522506
£565,10 Unit Price incl. VAT
26
Fourreau D
GU37522505
£629,10 Unit Price incl. VAT
27
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
28
Shock absorber, LH
GU37530513
Not Available
29
Fourreau G
GU37522607
£579,24 Unit Price incl. VAT
29
Fourreau G
GU37522606
£579,24 Unit Price incl. VAT
29
Fourreau G
GU37522605
£565,10 Unit Price incl. VAT
30
Screw with OR
GU30530521
£13,40 Unit Price incl. VAT
31
Gasket
GU39523700
Not Available
32
screw
GU66530514
Not Available
33
Front fork oil SAE10
GU30530527
Not Available
34
O-ring 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT

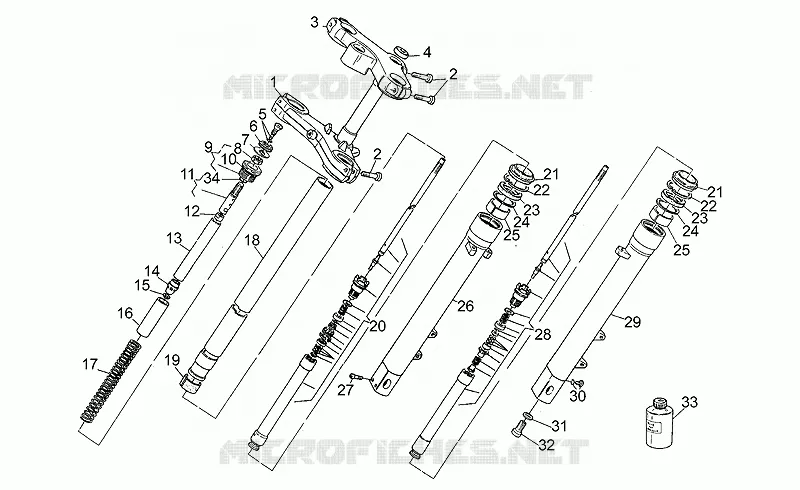

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
