1
Engine displacement
1100
2
Model
SPORT
3
Year
1994
4
Trim
Sport Carburatori 1100
5
Parts Catalog
Foot rests - Lateral stand
6
Parts Diagram
Parts Catalog
REAR MUDGUARD
by
FRONT BRAKE MASTER CYLINDER
Foot rests - Lateral stand
28
27
26
25
24
23
22
21
20
20
19
19
18
17
16
15
14
13
12
11
11
11
11
10
9
8
7
6
5
4
3
2
1
1
Lateral stand
GU30432100
Not Available
2
Bracket
GU30433400
Not Available
3
screw
GU30432801
£40,46 Unit Price incl. VAT
4
Special washer
GU95021114
Not Available
5
Central stand fixing screw
GU30433200
£17,64 Unit Price incl. VAT
6
Plate
GU30432700
Not Available
7
Outer spring
GU30434001
£24,11 Unit Price incl. VAT
8
Washer
GU95100521
£2,27 Unit Price incl. VAT
9
Inner spring
GU30434000
£17,05 Unit Price incl. VAT
10
Bracket
GU30433600
£26,86 Unit Price incl. VAT
11
Pad
GU19705900
£4,74 Unit Price incl. VAT
11
Pad
GU93180575
£6,22 Unit Price incl. VAT
12
Maintenance
GU30442705
£37,67 Unit Price incl. VAT
13
screw
GU98251040
£7,50 Unit Price incl. VAT
14
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
15
RH Foot rests
GU30440705
Not Available
16
LH Foot rests
GU30441805
Not Available
17
Pin
GU30441005
Not Available
18
Return spring
GU30441105
Not Available
19
Pin
GU30442205
£25,78 Unit Price incl. VAT
20
Stop ring
GU90280006
£0,58 Unit Price incl. VAT
21
Support repose-pieds dte
GU37444605
Not Available
22
Support r-p. G
GU37444705
Not Available
23
Rear footrest, RH
GU30442405
£89,47 Unit Price incl. VAT
24
Rear footrest, LH
GU30442805
£89,47 Unit Price incl. VAT
25
Footrest plate
GU30443105
£4,32 Unit Price incl. VAT
26
Spring
GU94321062
£2,45 Unit Price incl. VAT
27
Ball
GU92295706
£0,92 Unit Price incl. VAT
28
Plate
GU30441605
£3,41 Unit Price incl. VAT

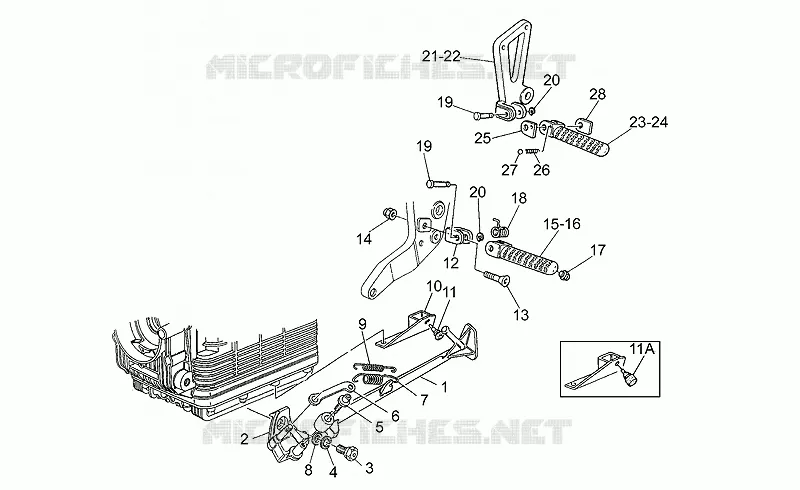

Find the detailed Foot rests - Lateral stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
