Parts Catalog
Oil radiator
6
Parts Diagram
Parts Catalog
Protection
by
Rear master cylinder
Oil radiator
1
2
2
2
3
4
5
6
7
7
8
8
9
10
11
1
Oil cooler
2B000889
£861,17 Unit Price incl. VAT
2
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
3
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
4
T bush
AP8221023
£1,64 Unit Price incl. VAT
5
Spring plate M6
254485
£1,64 Unit Price incl. VAT
6
Electric fan assy.
886235
£314,77 Unit Price incl. VAT
7
Pin
AP8121464
£4,82 Unit Price incl. VAT
8
Spacer
AP8161083
£4,68 Unit Price incl. VAT
9
Self-tap screw
478533
£0,98 Unit Price incl. VAT
10
Electric fan cable harness
B063434
£25,51 Unit Price incl. VAT
11
Cooling hood
B064009
£20,32 Unit Price incl. VAT

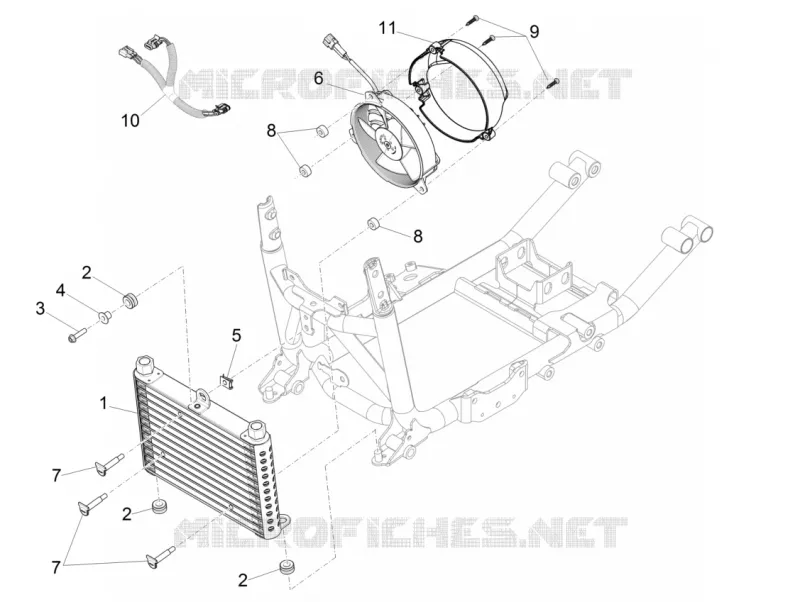

Find the detailed Oil radiator MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Eldorado E4 ABS
