Central electrical system

1

Main wiring harness

2D000316

£1 408,00 Unit Price incl. VAT

2

Rubber fuse box

AP8112811

£11,53 Unit Price incl. VAT

3

Fuse holder box

894603

£22,57 Unit Price incl. VAT

4

Fuse 7,5A

CM225607

£4,74 Unit Price incl. VAT

5

Fuse 10A

CM225610

£7,18 Unit Price incl. VAT

6

Fuse 15A

CM225615

£5,77 Unit Price incl. VAT

7

Fuse 20A

CM225620

£10,01 Unit Price incl. VAT

8

Fuse 30A

CM225730

£4,74 Unit Price incl. VAT

9

Fuse 40A

CM225740

£4,70 Unit Price incl. VAT

10

Relay 20A

895907

£11,15 Unit Price incl. VAT

11

Cable duct base

2B000353

£17,98 Unit Price incl. VAT

12

Cable duct cover

2B000354

£17,98 Unit Price incl. VAT

13

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

14

Cap

581061

£7,70 Unit Price incl. VAT

15

Insulating cap

856152

£7,30 Unit Price incl. VAT

16

Insulating cap

860746

£24,08 Unit Price incl. VAT

17

Terminal cap

895701

£13,50 Unit Price incl. VAT

18

Insulating cap

977916

£12,11 Unit Price incl. VAT

19

Plug connect diagnos ECU

582928

£3,18 Unit Price incl. VAT

20

Relais support

AP8124293

£7,88 Unit Price incl. VAT

21

Lock-strap L=180mm

145298

£1,14 Unit Price incl. VAT

22

Self-tap screw 3,9x14

AP8150413

£1,61 Unit Price incl. VAT

23

Plastic rivet

AP8102671

£0,29 Unit Price incl. VAT

24

Earth cable

B063433

£31,90 Unit Price incl. VAT

25

Taillight wiring harn.

2D000176

£16,06 Unit Price incl. VAT

26

Turn indicator wiring

2D000177

£20,89 Unit Price incl. VAT

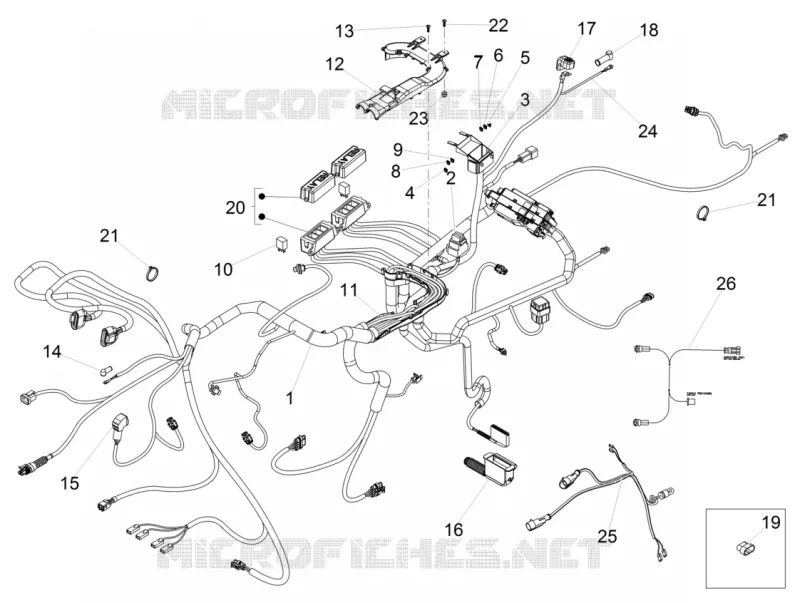

Find the detailed Central electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
