Engine displacement
1400
2
Model
ELDORADO
3
Year
2017
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Central body
6
Parts Diagram
Parts Catalog
Rear electrical system
by
Head cover
Central body
1
2
3
3
3
3
4
4
4
4
4
1
LH side panel, blank
887991
£156,38 Unit Price incl. VAT
1
LH side panel, black
2H000711000XN5
£300,16 Unit Price incl. VAT
1
LH side panel, red
2H000747000YR6
£306,70 Unit Price incl. VAT
2
RH side panel, black
2H000710000XN5
£300,16 Unit Price incl. VAT
2
LH side panel, red
2H000746000YR6
£306,70 Unit Price incl. VAT
2
RH side panel, blank
887990
£156,38 Unit Price incl. VAT
3
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
4
Spring plate M5
248419
£2,00 Unit Price incl. VAT

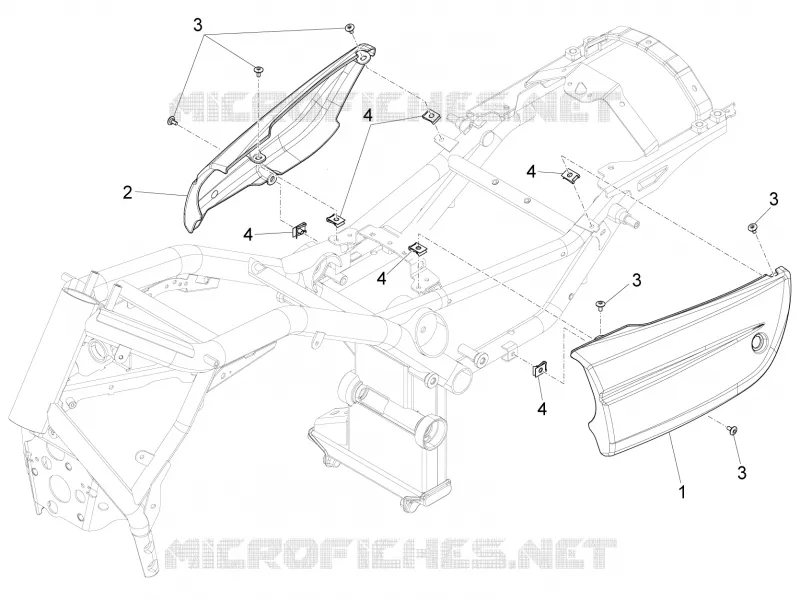

Find the detailed Central body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
