Engine displacement
1400
2
Model
ELDORADO
3
Year
2017
4
Trim
Eldorado E4 ABS
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Foot rests
by
Oil filters
Crankcases I
1
2
3
4
5
5
5
6
6
6
7
8
9
10
1
Timing system cover
976631
£240,52 Unit Price incl. VAT
2
Gasket ring 22x35x7viton
GU90412237
£30,26 Unit Price incl. VAT
3
Cover
GU05002130
£16,09 Unit Price incl. VAT
4
screw M6x35
GU98620335
£1,14 Unit Price incl. VAT
5
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
6
Bushing 6,8x8,8x5,8
GU91120606
£5,24 Unit Price incl. VAT
7
Alternator cover grey
GU05001630
£32,03 Unit Price incl. VAT
8
screw
GU98620330
£0,49 Unit Price incl. VAT
9
Cover gasket
976478
£26,94 Unit Price incl. VAT
10
Hex socket screw M8x55
GU98620455
£1,58 Unit Price incl. VAT

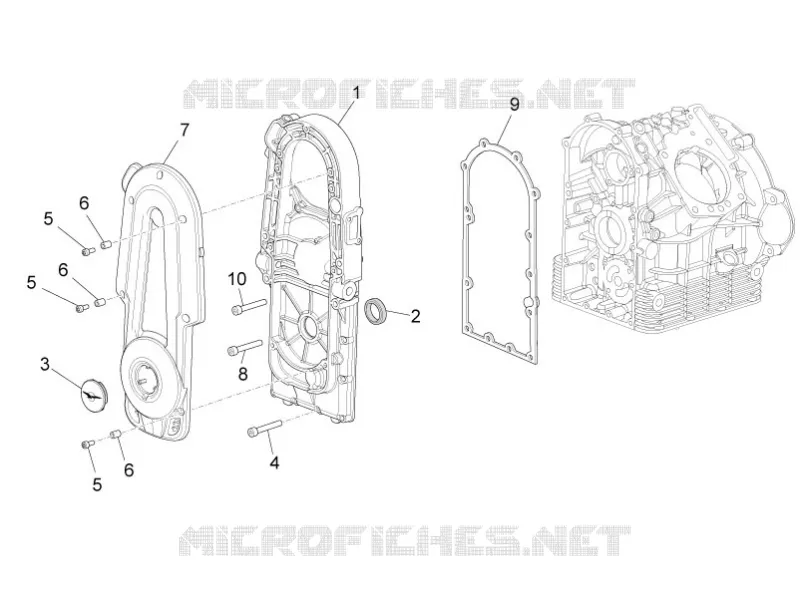

Find the detailed Crankcases I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
