Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Crankcases I
6
Parts Diagram
Parts Catalog
Rear lights
by
Handlebar - Controls
Crankcases I
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
1
Crankcase, grey
886908
Not Available
2
Pin
411209
£4,56 Unit Price incl. VAT
3
Pin
GU95512081
£4,34 Unit Price incl. VAT
4
Pin
560110
£10,10 Unit Price incl. VAT
5
Stud bolt M8x66
GU96508066
£50,56 Unit Price incl. VAT
6
Coupling bush
GU12018900
£10,75 Unit Price incl. VAT
7
Stud bolt M8x75
GU96508075
£13,44 Unit Price incl. VAT
8
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
9
Flanged nut M8
GU92660021
£1,60 Unit Price incl. VAT
10
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
11
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
12
Complete flange
976703
£413,83 Unit Price incl. VAT
13
Hex screw M8x25
GU98084425
£1,02 Unit Price incl. VAT
14
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
15
Gasket ring
GU90405367
£35,53 Unit Price incl. VAT
16
Seal ring (o-ring)
1A008362
Not Available
17
Sump gasket
B063861
£15,65 Unit Price incl. VAT
18
Motor oil cup
B063271
£215,98 Unit Price incl. VAT
19
Oil dipstick
B063898
£13,21 Unit Price incl. VAT
20
Gasket
B063850
£11,92 Unit Price incl. VAT
21
Screw w/ flange
AP8152284
£1,88 Unit Price incl. VAT
22
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
23
Gasket 10x18x1,5
GU01528930
£4,21 Unit Price incl. VAT
24
Hex socket screw M6x20
GU98682330
£1,26 Unit Price incl. VAT
25
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
26
Joint
B063846
£15,89 Unit Price incl. VAT
27
Gasket
GU01154230
£2,34 Unit Price incl. VAT
28
Thermometric switch
B063461
£65,38 Unit Price incl. VAT
29
O-ring 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
30
Gasket 20,1x28x2
GU95100709
£5,29 Unit Price incl. VAT

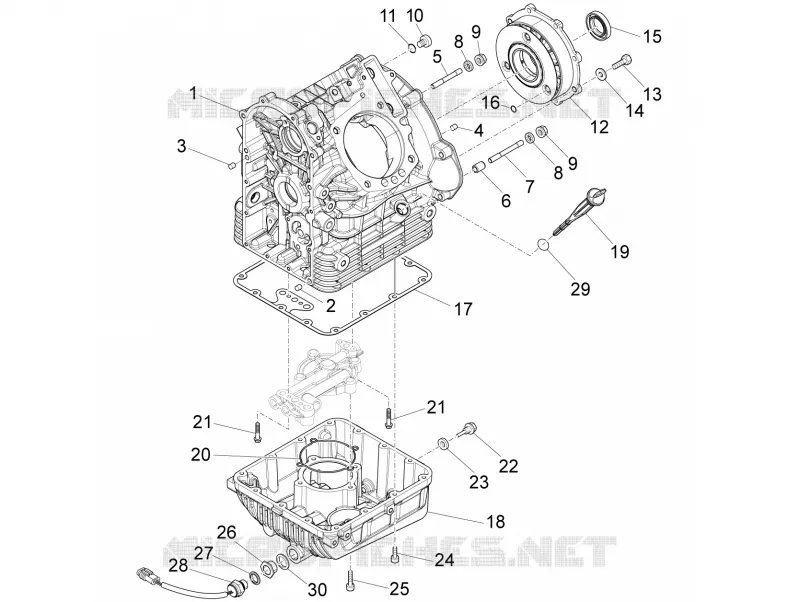

Find the detailed Crankcases I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
