Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Rear electrical system
6
Parts Diagram
Parts Catalog
Gear lever
by
Fuel tank
Rear electrical system
1
2
2
3
4
5
6
7
8
8
9
9
9
10
11
12
13
14
15
16
17
1
Maintenance
858882
£16,07 Unit Price incl. VAT
2
Relais support
B063013
£13,36 Unit Price incl. VAT
3
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
4
Washer
AP8150501
£2,48 Unit Price incl. VAT
5
Rubber spacer
AP8220150
£3,13 Unit Price incl. VAT
6
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
7
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
8
Rubber spacer
AP8112600
£3,13 Unit Price incl. VAT
9
Screw w/ flange M5x12
AP8152302
Not Available
10
Battery
883818
£295,69 Unit Price incl. VAT
11
Relay rubber
896715
£7,33 Unit Price incl. VAT
12
Electronic alarm kit
887335
Not Available
13
Bracket
B063806
£9,77 Unit Price incl. VAT
14
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
15
Electronic control unit
CM228201
£1 268,46 Unit Price incl. VAT
16
Injection relay 12V-40W
895481
£19,52 Unit Price incl. VAT
17
Wiring harness support
896675
£2,26 Unit Price incl. VAT

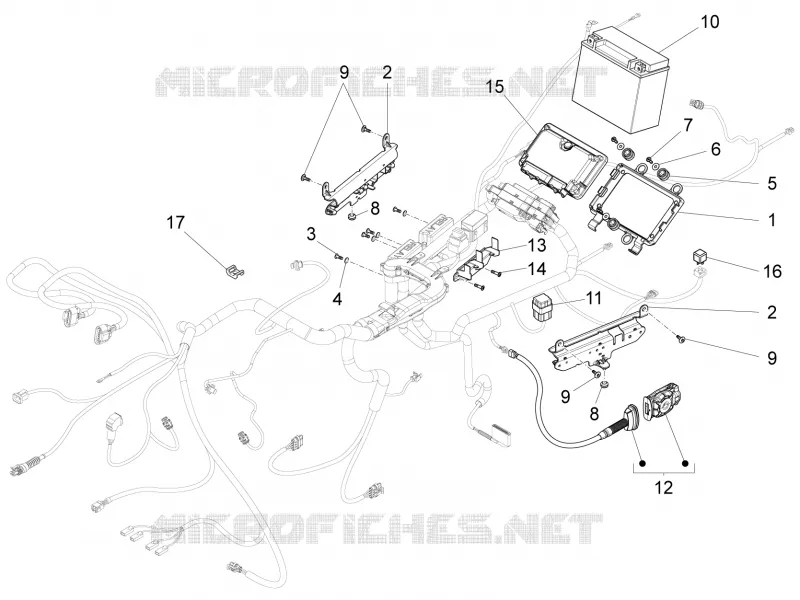

Find the detailed Rear electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
