1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Front fork Sachs
6
Parts Diagram
Parts Catalog
Central body
by
Rear brake caliper
Front fork Sachs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
16
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
28
28
29
29
30
31
31
32
32
33
34
1
RH hub cpl.
887512
£829,78 Unit Price incl. VAT
2
LH hub cpl.
887513
Not Available
3
RH slider
887829
£566,33 Unit Price incl. VAT
4
Left fork leg
887830
£566,33 Unit Price incl. VAT
5
Dust cover
B064059
£46,31 Unit Price incl. VAT
6
Circlip
B064060
£25,07 Unit Price incl. VAT
7
Oil seal
B064065
£68,68 Unit Price incl. VAT
8
Ring
B064064
£18,80 Unit Price incl. VAT
9
Spring guide bush
B064062
£46,30 Unit Price incl. VAT
10
Sliding bush
B064063
£65,84 Unit Price incl. VAT
11
Plug
B064068
£19,40 Unit Price incl. VAT
12
Spacer
B064066
£17,90 Unit Price incl. VAT
13
Circlip
B064067
£17,90 Unit Price incl. VAT
14
Sleeve
B064049
£99,90 Unit Price incl. VAT
15
Washer
B064058
£15,89 Unit Price incl. VAT
16
Snap ring
B064102
£7,40 Unit Price incl. VAT
17
Spring
B064050
£63,05 Unit Price incl. VAT
18
Preload tube
B064053
£43,60 Unit Price incl. VAT
19
LH plunger, complete
B064055
£665,32 Unit Price incl. VAT
20
RH plunger, complete
B064056
£665,32 Unit Price incl. VAT
21
O-ring
B064061
£17,90 Unit Price incl. VAT
22
Nut
B064052
£28,12 Unit Price incl. VAT
23
O-ring
B064057
£18,64 Unit Price incl. VAT
24
Plug
B064051
£90,24 Unit Price incl. VAT
25
Screw
B064069
£37,92 Unit Price incl. VAT
26
Washer
B064070
£18,06 Unit Price incl. VAT
27
Lower protection
2B001967
£85,90 Unit Price incl. VAT
28
Spacer
887586
£35,57 Unit Price incl. VAT
29
Upper protection
2B001966
£176,66 Unit Price incl. VAT
30
Hex socket screw M5x45
GU98690245
£2,50 Unit Price incl. VAT
31
O-ring 46,04x3,53
GU90706461
£10,73 Unit Price incl. VAT
32
Reflector, amber
GU05781630
£18,60 Unit Price incl. VAT
33
Hex socket screw M8x40
GU98680440
£1,02 Unit Price incl. VAT
34
Washer 8,4x14,57x1,6
GU95005308
£1,26 Unit Price incl. VAT

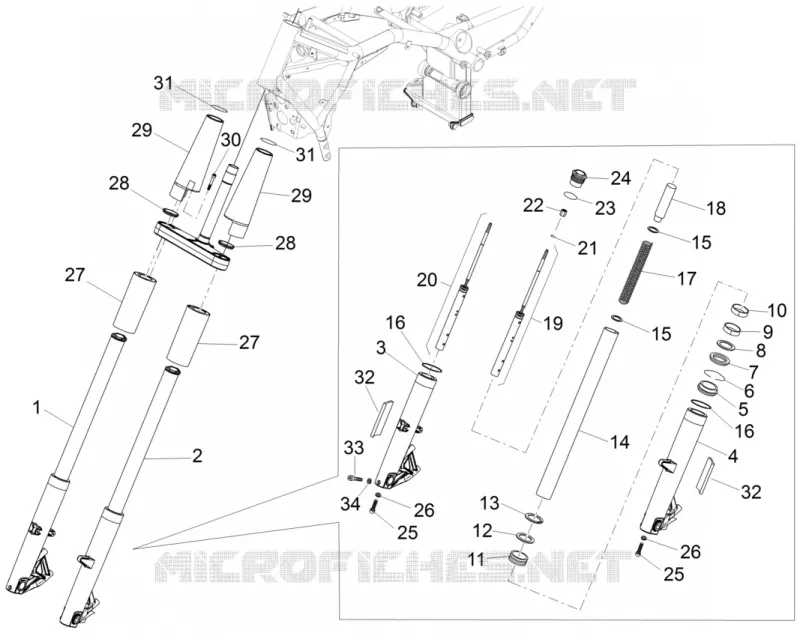

Find the detailed Front fork Sachs MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
