1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Drive shaft
by
Exhaust pipe
Rear master cylinder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Complete rear brake lever
887556
£226,37 Unit Price incl. VAT
2
Sintered bushing
895328
£6,22 Unit Price incl. VAT
3
screw M8x75
GU98680475
£5,23 Unit Price incl. VAT
4
Washer
GU95008308
£1,26 Unit Price incl. VAT
5
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
6
Spacer
B063903
£10,44 Unit Price incl. VAT
7
Washer 6,5x20x1,5
GU95005320
£7,93 Unit Price incl. VAT
8
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
9
Ribbon spring
B063328
£13,16 Unit Price incl. VAT
10
Screw w/ flange M6x16 inox
GU98210616
£3,95 Unit Price incl. VAT
11
Stop switch
B064022
£146,36 Unit Price incl. VAT
12
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
13
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
14
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
15
Fork
AP8101968
£16,72 Unit Price incl. VAT
16
Gear selector fork clips
AP8201301
£6,13 Unit Price incl. VAT
17
O-ring OR112
AP8120178
£4,69 Unit Price incl. VAT
18
Nut
GU92606206
£1,02 Unit Price incl. VAT
19
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
20
Rear master cylinder
887689
£155,77 Unit Price incl. VAT
21
Brake oil tank complete
B064104
£74,11 Unit Price incl. VAT

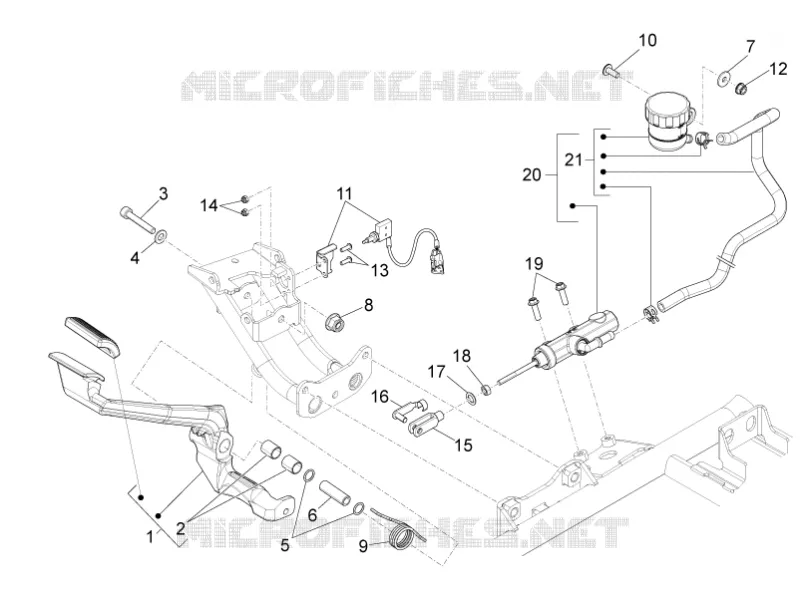

Find the detailed Rear master cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
