1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2014
4
Trim
California Touring ABS
5
Parts Catalog
Cylinder head - valves
6
Parts Diagram
Parts Catalog
Clutch control
by
Starter / Electric starter
Cylinder head - valves
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
9
9
10
10
11
11
12
13
1
RH head assy w/h valve
887164
£1 379,84 Unit Price incl. VAT
2
LH head assy with valve
887163
£1 379,84 Unit Price incl. VAT
3
Intake valve
872695
£64,93 Unit Price incl. VAT
4
Exhaust valve
872696
£100,43 Unit Price incl. VAT
5
Lower cup
874127
£30,86 Unit Price incl. VAT
6
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
7
Valve spring
B013517
£14,78 Unit Price incl. VAT
8
Valve half-cone
285846
£1,98 Unit Price incl. VAT
9
Upper cup
874126
£50,63 Unit Price incl. VAT
10
Exhaust pipe stud bolt
B017636
Not Available
11
O-ring 26X2,5
873626
£5,08 Unit Price incl. VAT
12
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
13
Cylinder head gasket sp0,6
887456
£53,08 Unit Price incl. VAT
13
Cylinder head gasket sp.1
887455
£65,96 Unit Price incl. VAT
13
Cylinder head gasket sp.0,8
887454
£57,44 Unit Price incl. VAT

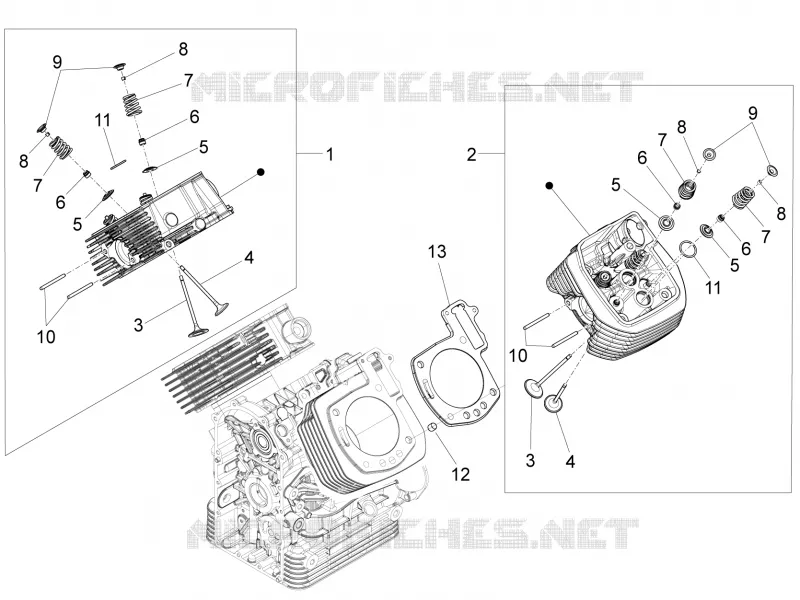

Find the detailed Cylinder head - valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
