1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2014
4
Trim
California Touring ABS
5
Parts Catalog
Front lights
6
Parts Diagram
Parts Catalog
Oil radiator
by
Protection
Front lights
1
2
2
3
4
5
5
6
6
7
8
9
10
10
11
12
12
13
13
14
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
26
27
27
28
29
29
29
30
31
31
32
32
33
34
35
36
37
37
38
38
1
Spacer
887698
£31,22 Unit Price incl. VAT
2
Bush
B063174
£16,21 Unit Price incl. VAT
3
Spacer
GU91120605
£13,44 Unit Price incl. VAT
4
Articulated head M6
887921
£22,97 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98612320
£1,06 Unit Price incl. VAT
6
Hex socket screw M6x55
AP8150045
£4,78 Unit Price incl. VAT
7
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT
8
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
9
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
10
Washer 6,4x12,5*
AP8150014
£1,27 Unit Price incl. VAT
11
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
12
Washer
887697
£5,08 Unit Price incl. VAT
13
Washer 6,4x12,5*
AP8150178
£1,27 Unit Price incl. VAT
14
Gasket ring
006410
Not Available
15
Headlight
887453
£677,92 Unit Price incl. VAT
16
Lamp H7 12V-55W
294353
£34,40 Unit Price incl. VAT
17
Lamp H3 12V-55W
294278
£8,32 Unit Price incl. VAT
18
RH headlight supp.
887554
Not Available
19
LH headlight supp.
B063091
Not Available
20
Fog light
B063295
£306,31 Unit Price incl. VAT
21
Lamp 12V-35W H8
580734
£47,77 Unit Price incl. VAT
22
Cap
B063296
£91,67 Unit Price incl. VAT
23
Ring nut
B063297
£52,93 Unit Price incl. VAT
24
Light assembly
B063343
£62,51 Unit Price incl. VAT
25
Fog light support
887997
£521,81 Unit Price incl. VAT
26
Block
B063756
£22,18 Unit Price incl. VAT
27
T bush
AP8221349
£4,93 Unit Price incl. VAT
28
Rubber spacer
AP8120594
£3,13 Unit Price incl. VAT
29
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
30
Hex socket screw M8x16
GU98350416
£0,38 Unit Price incl. VAT
31
Hex socket screw M6x14
GU98370614
£1,02 Unit Price incl. VAT
32
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
33
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
34
Cable-guide
AP8221310
£2,96 Unit Price incl. VAT
35
Front right turn indicator
B063028
£68,16 Unit Price incl. VAT
36
Front left turn indicator
B063029
£68,16 Unit Price incl. VAT
37
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
38
Turn indicator lens
2D000007
£8,63 Unit Price incl. VAT

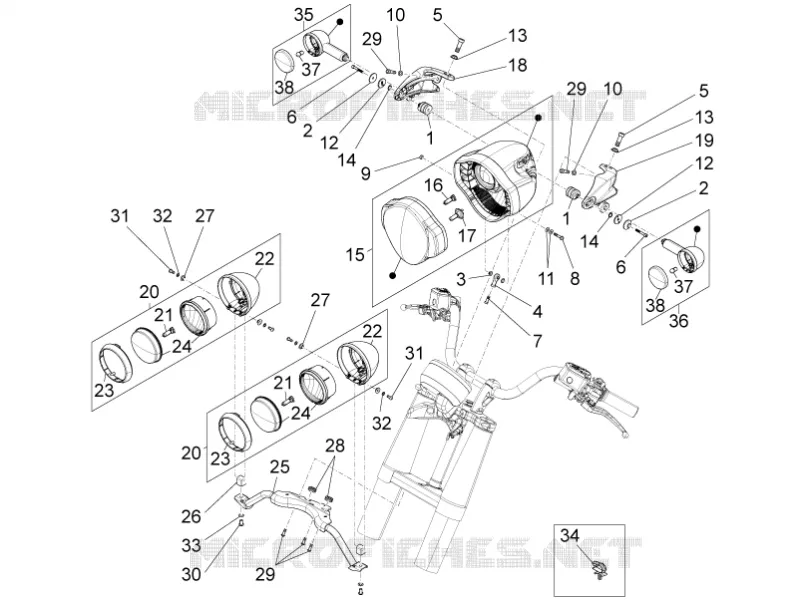

Find the detailed Front lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
