1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2014
4
Trim
California Touring ABS
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Head cover
by
Foot rests
Fuel tank
1
2
3
4
5
6
7
8
9
10
10
10
10
10
11
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
1
Fuel tank, white
88693400BM
Not Available
1
Unfinished fuel tank
2B000147
£2 033,50 Unit Price incl. VAT
1
Unfinished fuel tank
886934
Not Available
1
Complete black fuel tank
88693400XN2
Not Available
1
Complete black fuel tank
2B000147000XN2
£2 534,50 Unit Price incl. VAT
2
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
3
Bush
AP8121511
£3,97 Unit Price incl. VAT
4
Tank rubber
AP8120557
£17,03 Unit Price incl. VAT
5
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
6
Cap flange gasket
B063080
£19,73 Unit Price incl. VAT
7
Fuel cap flange spacer
B063246
£8,82 Unit Price incl. VAT
8
Fuel cap coupling flange
B063079
£63,41 Unit Price incl. VAT
9
Hex socket screw M5x14
B043864
£2,24 Unit Price incl. VAT
10
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
11
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
12
Hose clamp d.9,5
AP8102998
£2,93 Unit Price incl. VAT
13
Fuel level sensor
B063706
£55,85 Unit Price incl. VAT
14
Low self-locking nut
AP8150311
£0,07 Unit Price incl. VAT
15
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
16
Fuel pump
B063104
£983,88 Unit Price incl. VAT
17
Gasket
GU01107490
£63,04 Unit Price incl. VAT
18
Fuel filter
GU01106090
£81,40 Unit Price incl. VAT
19
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
20
Fuel pipe complete with joints
B064026
£106,99 Unit Price incl. VAT
21
Fuel pipe complete with joints
B064027
Not Available
22
TCREI M8x16 Screw
GU98882416
£1,16 Unit Price incl. VAT
23
Rubber spacer *
AP8201124
£7,40 Unit Price incl. VAT
24
3-way union
AP8104666
£16,02 Unit Price incl. VAT

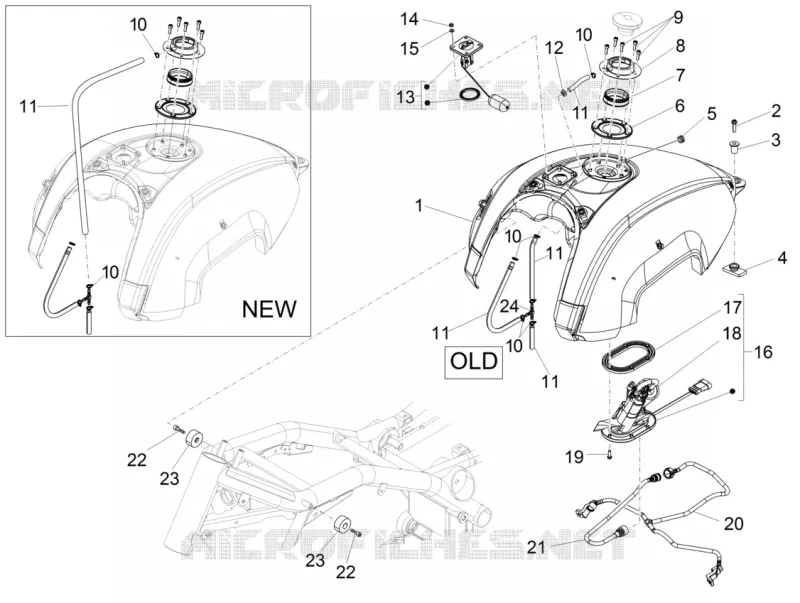

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
