1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2014
4
Trim
California Touring ABS
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Starter / Electric starter
by
Lubrication
Fuel vapour recover system
13
12
11
10
9
9
9
8
7
7
7
6
6
5
4
4
3
2
2
1
1
1
14
14
15
1
pipe SAE 30 d.12,7x6,35
856063
£63,43 Unit Price incl. VAT
2
pipe SAE 30 d.11,11x4,8
856062
Not Available
3
Carbon filter
GU01116031
£189,56 Unit Price incl. VAT
4
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
5
Valve
860138
£49,48 Unit Price incl. VAT
6
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
7
Hose clamp
AP8102738
£7,85 Unit Price incl. VAT
8
Joint
2B000219
£10,85 Unit Price incl. VAT
9
Hose clamp
AP8102159
£9,29 Unit Price incl. VAT
10
Joint
GU06704700
£4,68 Unit Price incl. VAT
11
O-ring 6x1
GU90706009
£2,48 Unit Price incl. VAT
12
Joint
GU95963062
£28,25 Unit Price incl. VAT
13
Bored screw
GU95990023
£19,60 Unit Price incl. VAT
14
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
15
2-way union
AP8101944
£5,48 Unit Price incl. VAT

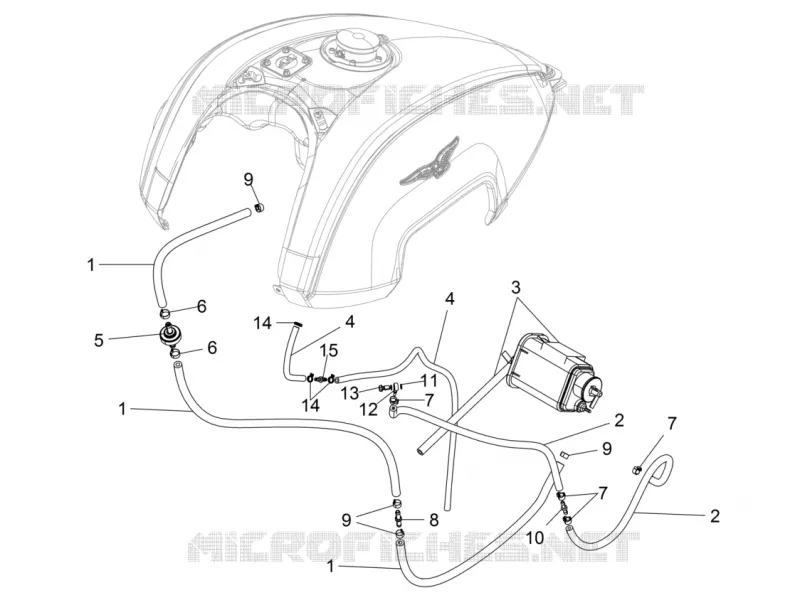

Find the detailed Fuel vapour recover system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
