Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Variator cover
6
Parts Diagram
Parts Catalog
Crankcase
by
Front body - Handguard
Variator cover
1
2
3
4
5
6
7
7
8
8
9
10
10
10
11
12
13
13
14
15
15
16
17
18
18
19
20
20
20
21
21
1
Cover
AP8575040
Not Available
2
Self-tap screw 3x20
AP8580061
Not Available
3
Variator cover
AP8575032
Not Available
4
Bush
AP8550347
Not Available
5
Bearing
AP8550580
Not Available
6
Snap ring
AP8550578
Not Available
7
Pin d.9,5 h=15
AP8550107
Not Available
8
Screw w/ flange M6x30
AP8550558
Not Available
9
Air deflector
AP8580140
Not Available
9
Air deflector
AP8580136
Not Available
10
screw
AP8550024
Not Available
11
Axe av.
AP8144547
£5,75 Unit Price incl. VAT
12
Rear slide piece
AP8178010
Not Available
13
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
14
Couvre carter
AP8168599
£43,80 Unit Price incl. VAT
15
Joint;
AP8102504
£2,52 Unit Price incl. VAT
16
Protection
AP8168598
Not Available
17
Collier
AP8120657
£1,88 Unit Price incl. VAT
18
Douille
AP8121167
£4,46 Unit Price incl. VAT
19
"Douille en ""T"""
AP8121725
£1,88 Unit Price incl. VAT
20
Screw
AP8150314
Not Available
21
Rondelle
AP8150014
£1,27 Unit Price incl. VAT

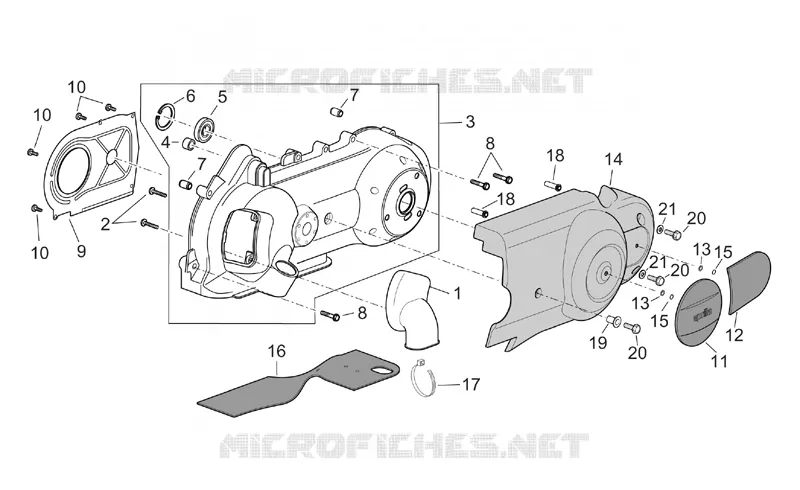

Find the detailed Variator cover MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
