Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front fork - Stem base
6
Parts Diagram
Parts Catalog
Water cooler
by
Oil filter
Front fork - Stem base
1
2
3
3
4
4
5
5
6
6
1
Front fork
AP8123793
Not Available
2
Stem base
AP8163001
Not Available
2
Stem base
AP8123904
Not Available
2
Stem base
AP8163161
Not Available
3
Plug
AP8123696
Not Available
3
Cover
AP8163303
£5,90 Unit Price incl. VAT
3
Plug
AP8123759
£5,94 Unit Price incl. VAT
4
Stop ring
AP8123756
£1,16 Unit Price incl. VAT
4
Stop ring
AP8163304
Not Available
4
O-ring
AP8123695
£7,28 Unit Price incl. VAT
5
Screw w/ flange
AP8163002
£3,76 Unit Price incl. VAT
5
Screw w/ flange
AP8152289
£1,27 Unit Price incl. VAT
6
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT
6
Disc cover bush
AP8163010
Not Available

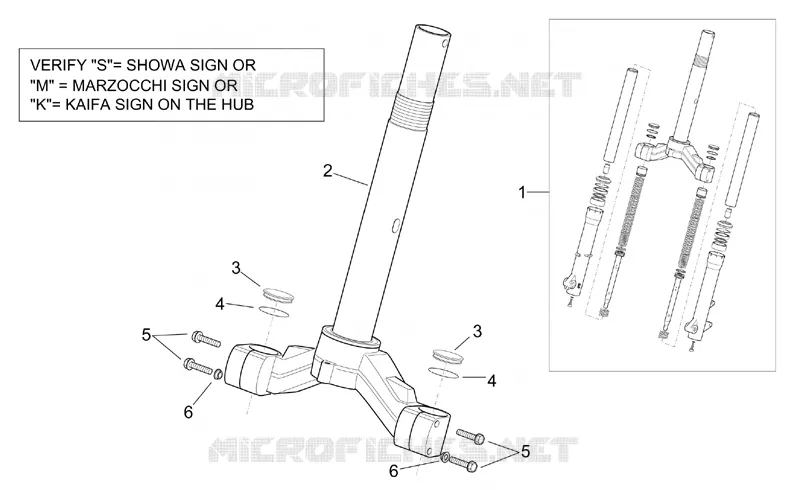

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
