1
Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Central body II
6
Parts Diagram
Parts Catalog
Front body - Front cover
by
Dashboard
Central body II
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
10
10
10
11
11
12
13
14
1
Low. prot.fairing
AP8168881
Not Available
1
Underpanel, blue
AP8178039
Not Available
1
Low. prot.fairing
AP8178040
Not Available
2
Black tunnel
AP8168877
Not Available
3
RH mat, black
AP8158923
£32,14 Unit Price incl. VAT
4
LH mat, black
AP8158924
£32,14 Unit Price incl. VAT
5
RH Floor panel, black
AP8168879
£42,60 Unit Price incl. VAT
6
LH Floor panel, black
AP8168880
£42,60 Unit Price incl. VAT
7
Screw clip D5,5*
AP8201763
£1,85 Unit Price incl. VAT
8
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
9
Screw 5,5x20
AP8152345
£1,46 Unit Price incl. VAT
10
Screw w/ flange M5x12
AP8152302
Not Available
11
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
12
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
13
Cover black
AP8168947
£14,68 Unit Price incl. VAT
14
Protection
AP8168598
Not Available

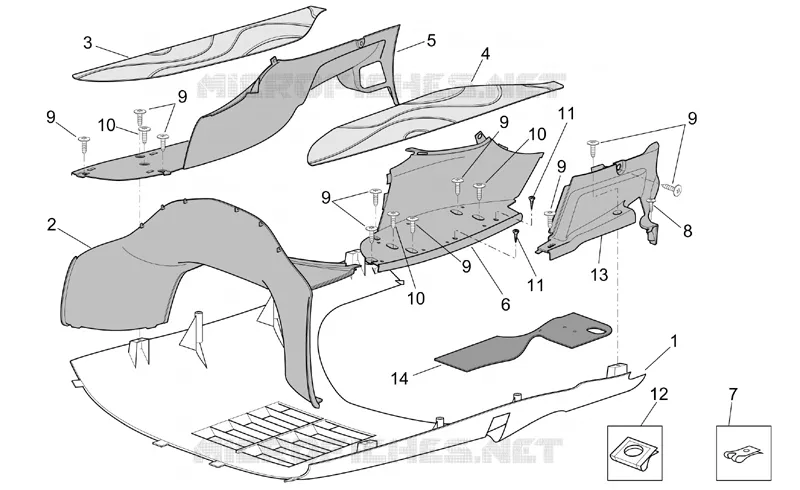

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
