Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Taillight
by
Showa front fork - Hubs, sleeves
Cooling system
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
14
14
15
16
17
18
18
19
19
20
20
21
22
22
1
Expansion tank support
AP8134487
Not Available
2
Rad cap w/ vent
AP8201463
Not Available
3
Expansion tank
AP8139255
Not Available
4
Water cooler-pump tube
AP8144612
Not Available
5
Water cooler-head tube
AP8144613
£19,93 Unit Price incl. VAT
6
Hose clamp 17-25
AP8102732
£8,94 Unit Price incl. VAT
7
Cooler pipe
AP8144618
Not Available
8
Cooler-expansion tank pipe
AP8144619
£70,45 Unit Price incl. VAT
9
Cooler pipe
AP8144620
£16,48 Unit Price incl. VAT
10
Breather pipe
AP8144615
£72,66 Unit Price incl. VAT
11
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
12
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
13
Clip M6
AP8102376
Not Available
14
Hose clamp D16-24x8*
AP8101573
£2,95 Unit Price incl. VAT
15
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
16
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
17
Fuel pipe 5,5x10
AP8120952
Not Available
18
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
19
Washer 5,5x15x1,6*
AP8150013
£1,61 Unit Price incl. VAT
20
Screw w/ flange M5x25
AP8152275
Not Available
21
Self-locking nut M5
AP8152306
Not Available
22
T bush
AP8121736
£1,66 Unit Price incl. VAT

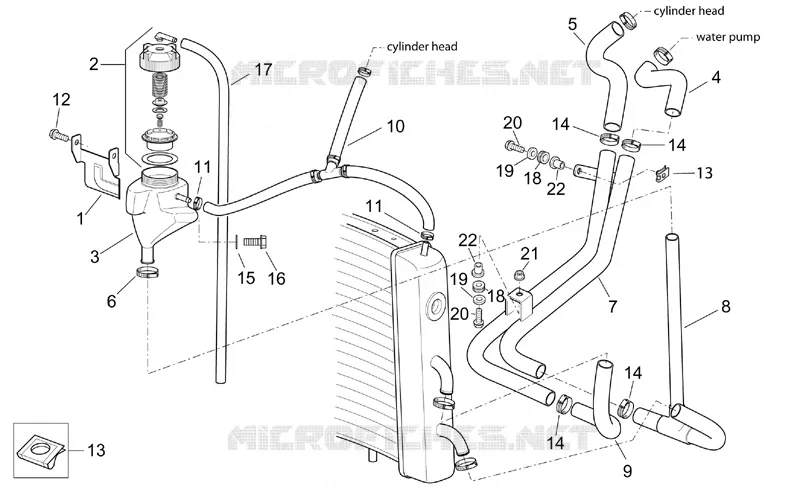

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
