Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front body - Front shield
6

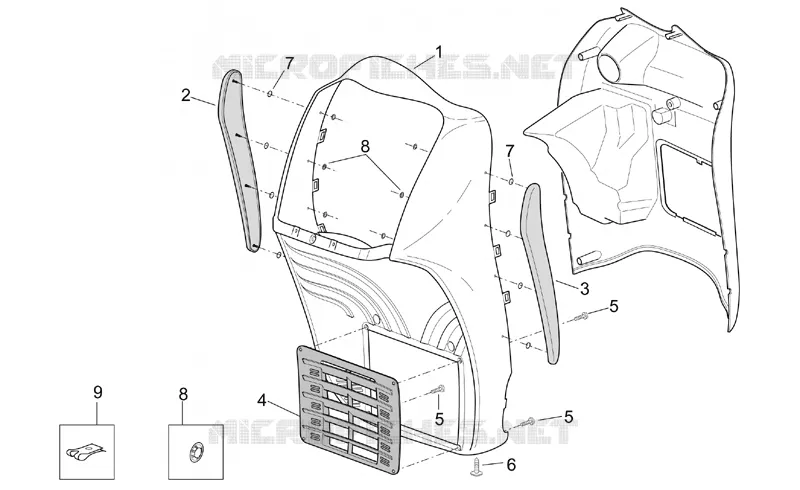

Parts Diagram
Parts Catalog
Front body - Handguard
by
Cylinder
Front body - Front shield
1
2
3
4
5
5
5
6
7
7
8
8
9
1
Front shield, green
AP8168748
Not Available
1
Front shield, grey
AP8149540
Not Available
1
Front shield, blue
AP8168824
Not Available
2
RH bumper, black
AP8158918
£11,68 Unit Price incl. VAT
3
LH bumper, black
AP8158919
£11,68 Unit Price incl. VAT
4
Water cooler shield, black
AP8158997
Not Available
5
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
6
Screw w/ flange M5x12
AP8152302
Not Available
7
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
8
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
9
Screw clip D4,2
AP8102782
Not Available
