1
Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Transmission
6
Parts Diagram
Parts Catalog
Kaifa front fork - Hubs, sleeves
by
LH Controls

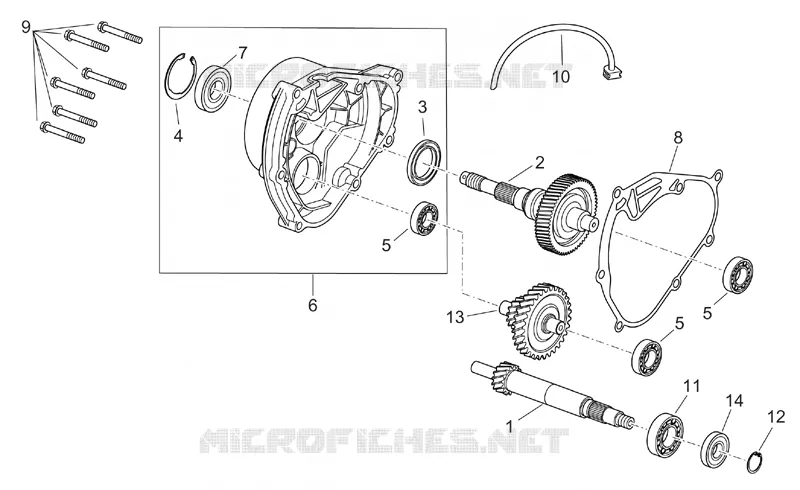

Transmission
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
1
Driven pulley shaft
AP8575018
Not Available
2
Rear wheel axis cpl.
AP8575019
Not Available
2
Rear wheel axis cpl.
AP8575020
Not Available
3
Oil seal 38x50x7
AP8560125
Not Available
4
Circlip
AP8560130
Not Available
5
Bearing d15x42x13
AP8560019
Not Available
6
Transmission cover cpl.
AP8575021
Not Available
7
Bearing d30x55x13
AP8560126
Not Available
8
Gasket
AP8575022
Not Available
9
screw
AP8570077
Not Available
10
Breather
AP8580189
Not Available
11
Bearing
AP8575025
Not Available
12
Snap ring
AP8560007
Not Available
13
Transmission shaft
AP8575023
Not Available
13
Transmission shaft
AP8575024
Not Available
14
Gasket ring
AP8550577
Not Available

Find the detailed Transmission MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
