Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Top box
6

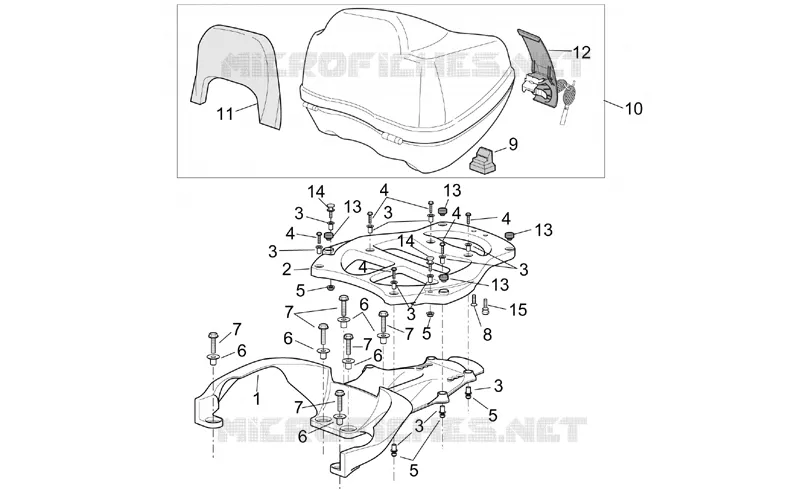

Parts Diagram
Parts Catalog
Lock hardware kit
by
Top box
1
2
3
3
3
3
3
3
3
4
4
4
4
4
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
9
10
11
12
13
13
13
13
14
14
15
1
Lugg.rack support, black
AP8158928
Not Available
2
Luggage rack, black
AP8158927
Not Available
3
"Douille en ""T"""
AP8121725
£1,88 Unit Price incl. VAT
4
Vis bride
AP8152282
£1,27 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
6
Douille;
AP8121332
£3,43 Unit Price incl. VAT
7
Vis bride
AP8152288
£2,20 Unit Price incl. VAT
8
Vis FHC
AP8702101
£1,69 Unit Price incl. VAT
9
Fixing pin
AP8702100
Not Available
10
Top box, grey
AP8158929
Not Available
10
Top box, green
AP8168754
Not Available
10
Top box, blue
AP8168830
Not Available
11
Seat cushion, grey
AP8129352
Not Available
11
Seat cushion, black
AP8129367
Not Available
12
Lock lever, black
AP8792171
Not Available
13
Caoutchouc
AP8706087
£2,95 Unit Price incl. VAT
14
Fixing pin
AP8700868
Not Available
15
Shear rivet
AP8706225
Not Available
