Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Rear shock absorber
by
Acc. - Various I
Air box
1
2
3
4
5
6
7
8
8
9
9
9
10
11
12
12
13
14
14
15
16
17
18
1
Couv.corps filtre;
AP8158788
£20,22 Unit Price incl. VAT
2
Base corps filtre;
AP8158789
£18,54 Unit Price incl. VAT
3
Air filter
AP8102832
Not Available
4
Grille caisse filtre sup.;
AP8139287
£5,82 Unit Price incl. VAT
5
Couvercle de filtre;
AP8139252
£5,80 Unit Price incl. VAT
6
Grille caisse filtre inf.;
AP8139652
£5,82 Unit Price incl. VAT
7
Joint
AP8120615
£2,59 Unit Price incl. VAT
8
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
9
Vis
AP8150426
£1,27 Unit Price incl. VAT
10
Oil breather pipe
AP8120977
Not Available
11
Tuyau essence 6x10
AP8144038
£38,70 Unit Price incl. VAT
12
Collier clic
AP8102239
£3,06 Unit Price incl. VAT
13
Bouchon de fermeture
AP8120876
£8,23 Unit Price incl. VAT
14
Collier
AP8101595
£3,97 Unit Price incl. VAT
15
Gasket D4
AP8120593
Not Available
16
Caoutchouc
AP8141132
£1,27 Unit Price incl. VAT
17
Collier
AP8102766
£1,88 Unit Price incl. VAT
18
Protection;
AP8158791
£11,24 Unit Price incl. VAT

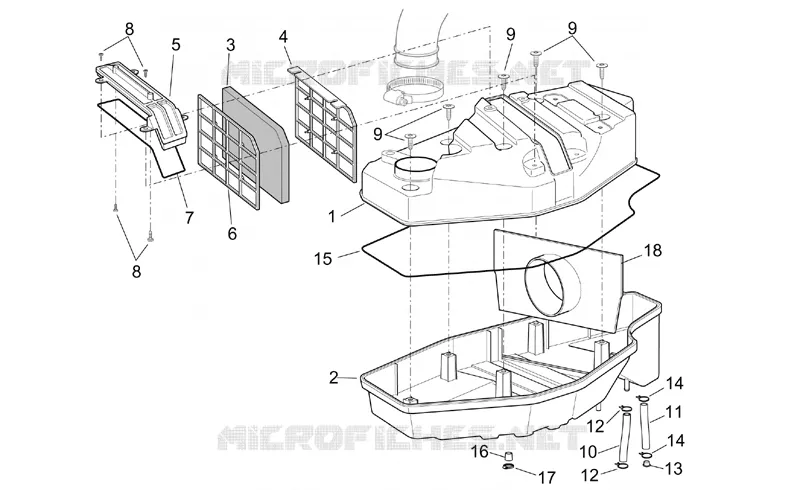

Find the detailed Air box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
