Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Camshaft
6
Parts Diagram
Parts Catalog
Connecting rod
by
Rear caliper
Camshaft
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Rocker arm adjuster nut
AP8551047
Not Available
2
Valve adj.spec.screw
AP8551046
Not Available
3
Rocker arm assy., exhaust
AP8580081
Not Available
4
Rocker arm assy., inlet
AP8580080
Not Available
5
Camshaft
AP8580179
Not Available
5
Camshaft
AP8580213
Not Available
6
Rocker arms axis
AP8580098
Not Available
7
Timing system gear
AP8580097
Not Available
8
screw M6x35
AP8550079
Not Available
8
Hex socket screw M5x25
AP8580099
Not Available
9
plate
AP8580206
Not Available
10
Screw w/ flange
AP8551045
Not Available
11
plate
AP8580105
Not Available
12
screw TEF
AP8575035
Not Available
12
screw
AP8560008
Not Available
13
Plain washer
AP8580187
Not Available
14
Plain washer
AP8580188
Not Available
15
Drum
AP8580129
Not Available
16
Weight
AP8580170
Not Available
17
Spring
AP8580100
Not Available
18
Counterweight
AP8580096
Not Available
19
Gasket
AP8580106
Not Available

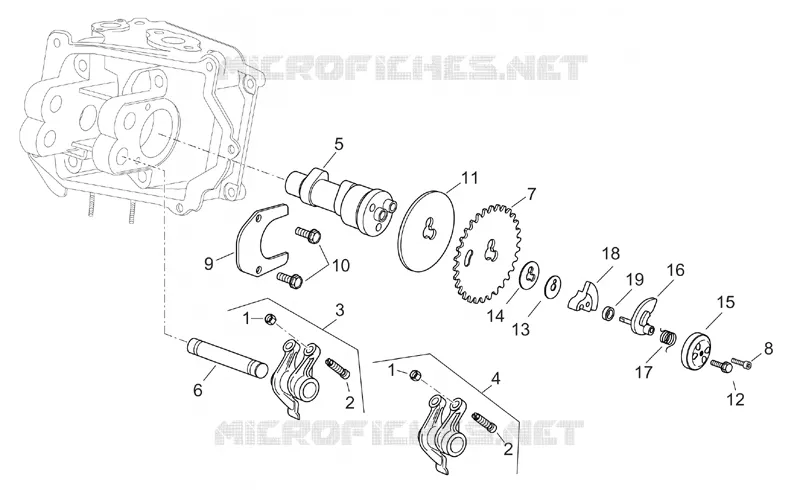

Find the detailed Camshaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
