Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Handlebar
by
Acc. - Mechanics anti-theft
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Idle jet 34
AP8580223
Not Available
1
Idle jet 36
AP8580224
Not Available
2
Main jet 118
AP8580226
Not Available
2
Main jet 108
AP8580225
Not Available
3
Adj.min.eng.speed air screw
AP8580227
Not Available
4
Conical pin
AP8580229
Not Available
4
Conical pin
AP8580228
Not Available
5
Valve gas return spring
AP8580231
Not Available
5
Valve gas return spring
AP8580230
Not Available
6
Float chamber cpl.
AP8575001
Not Available
6
Float chamber cpl.
AP8580232
Not Available
7
Starter cover
AP8580031
Not Available
8
Cover
AP8580033
Not Available
9
screw
AP8580016
Not Available
10
screw
AP8580017
Not Available
11
Fuel closing needle
AP8580018
Not Available
12
Diaphragm
AP8580038
Not Available
13
Float pin
AP8580019
Not Available
14
Float
AP8580020
Not Available
15
Spring
AP8580021
Not Available
16
Cup
AP8580022
Not Available
17
Washer
AP8580023
Not Available
18
Circlip
AP8580024
Not Available
19
Spring
AP8580028
Not Available
20
Washer
AP8580029
Not Available
21
Automatic starter cpl.
AP8575002
Not Available

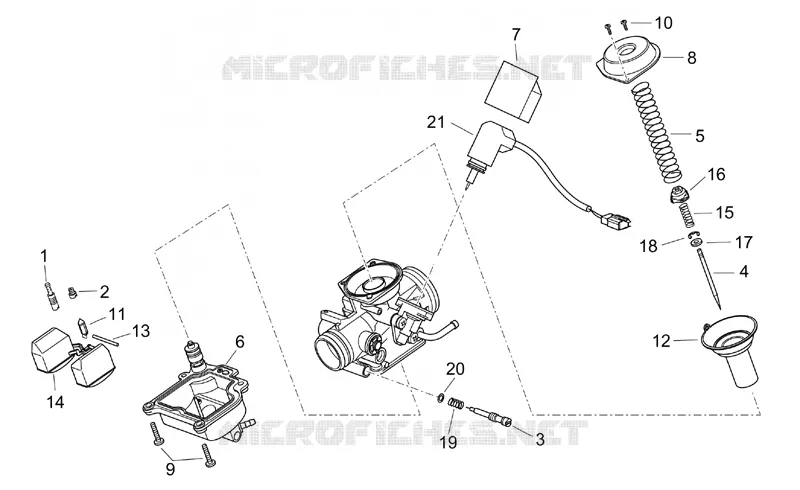

Find the detailed Carburettor II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
