1
Engine displacement
350
2
Model
V35
3
Year
1980
4
Trim
V 35 Acc. Elettronica
5
Parts Catalog
Intake-exhaust
6
Parts Diagram
Parts Catalog
Frame
by
Drive shaft
Intake-exhaust
1
2
3
3
4
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
56
56
57
58
60
61
62
63
64
65
66
67
68
70
71
72
73
74
75
77
78
79
80
82
84
85
86
88
90
91
92
93
94
1
Carburettor RH
GU19112650
Not Available
1
Carburettor RH
GU19112600
Not Available
1
Carburettor RH
GU19112610
Not Available
2
Carburettor LH
GU19112651
Not Available
2
Carburettor LH
GU19112611
Not Available
2
Carburettor LH
GU19112601
Not Available
3
Carburettor flange
GU61114300
Not Available
4
Hose clamp
GU93305025
Not Available
5
Manifold
GU19114400
Not Available
6
Gasket ring
GU90706315
Not Available
7
screw
GU98054214
Not Available
8
Rondelle
GU95004205
£1,13 Unit Price incl. VAT
9
Intake manifold
GU19114300
Not Available
10
Hose clamp
GU93305092
£14,63 Unit Price incl. VAT
11
RACCORD COUDE
GU17114650
£13,68 Unit Price incl. VAT
12
Tuyau reniflard radiateur
GU95985532
£12,83 Unit Price incl. VAT
13
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
14
Air filter support
GU19155775
Not Available
15
Cover
GU19156700
Not Available
16
ELEMENT AR
GU19156900
£15,58 Unit Price incl. VAT
17
Breather pipe
GU19156000
Not Available
18
Ring
GU17113450
£2,66 Unit Price incl. VAT
19
Filtre air
GU17113651
£20,29 Unit Price incl. VAT
20
Filter cover
GU17114050
Not Available
21
Plate
GU19114100
Not Available
22
Rondelle 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
23
Nut
GU92670305
£2,38 Unit Price incl. VAT
24
screw
GU98052222
Not Available
25
Rondelle 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
26
Rubber spacer
GU91551085
Not Available
27
Ecrou
GU92630105
£1,68 Unit Price incl. VAT
28
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
29
Hose clamp
GU61108400
£0,72 Unit Price incl. VAT
30
Collier D9
GU61108500
£0,96 Unit Price incl. VAT
31
Starter
GU23133100
Not Available
32
Choke cable
GU19133500
Not Available
33
LH choke cable
GU19134000
Not Available
34
RH exhaust manifold
GU19120700
Not Available
35
LH exhaust manifold
GU19120705
Not Available
36
Exhaust pipe gasket
GU61025200
Not Available
37
Spacer
GU61025400
Not Available
38
Ring nut
GU61025100
Not Available
39
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
40
Nut
GU92701062
Not Available
41
LH silencer
GU19122900
Not Available
42
RH silencer
GU19123000
Not Available
43
Hose clamp
GU61126920
Not Available
44
pipe
GU19121100
Not Available
45
screw
GU98052330
Not Available
46
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
47
Ecrou
GU92602206
£1,68 Unit Price incl. VAT
48
Hex screw M10X22
GU98054522
Not Available
49
Notched washer
GU95021110
Not Available
50
Ecrou
GU92602410
£0,96 Unit Price incl. VAT
51
Gasket envelope
GU39939900
£11,65 Unit Price incl. VAT
52
Cap
GU13937000
£2,53 Unit Price incl. VAT
53
Wire tensioner screw
GU53937200
Not Available
54
Ecrou
GU19938880
£2,63 Unit Price incl. VAT
55
Tuyau
GU49938900
£10,26 Unit Price incl. VAT
56
Nut
GU12937300
Not Available
57
screw
GU13937900
Not Available
58
Starter device cover
GU17937450
Not Available
60
Spring
GU25937600
Not Available
61
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
62
Adj.min.eng.speed screw
GU13936200
Not Available
63
RESSORT
GU13936300
£1,14 Unit Price incl. VAT
64
Gas valve adjuster screw
GU13936600
Not Available
65
Spring
GU13936700
Not Available
66
screw
GU13932800
Not Available
67
Washer
GU13932900
Not Available
68
Valve cover
GU53935000
Not Available
70
Vis tendeur de fil
GU12937200
£5,36 Unit Price incl. VAT
71
Gas valve return spring
GU53937100
Not Available
72
Conical pin
GU61934940
Not Available
72
Conical pin
GU19934900
Not Available
73
Conical pin clip
GU55938585
Not Available
74
Gas valve 40
GU61934800
Not Available
75
Starter jet 60
GU19936000
£9,53 Unit Price incl. VAT
77
Needle valve
GU19935500
Not Available
78
Idle jet 40
GU19935900
Not Available
79
Gasket
GU14931750
Not Available
80
Needle valve
GU19934600
Not Available
82
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
84
Cap fixing screw
GU10934900
Not Available
85
Float
GU61934300
Not Available
86
Float pin
GU13933100
£17,57 Unit Price incl. VAT
88
Float chamber
GU10934400
Not Available
90
Main jet 98
GU39935701
Not Available
90
Main jet 102
GU19935700
Not Available
90
Main jet 105
GU19935750
Not Available
91
Plug with OR
GU10933700
Not Available
92
Gasket
GU19113900
Not Available
93
Gasket ring
GU90706572
Not Available
94
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT

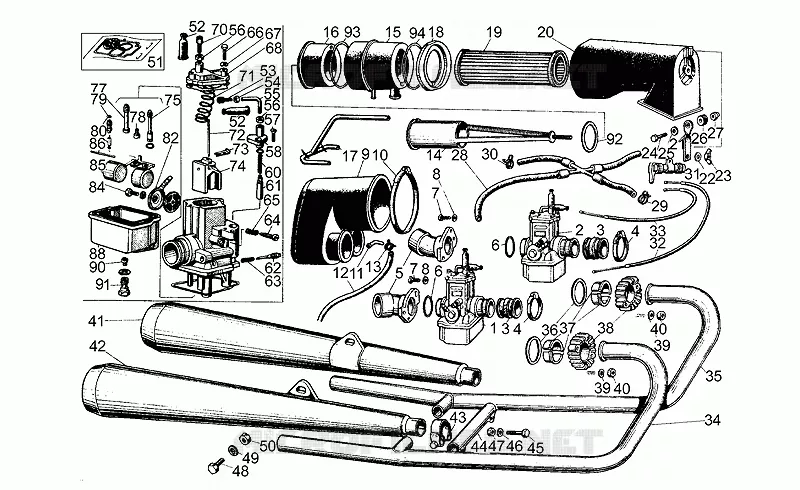

Find the detailed Intake-exhaust MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 35 Acc. Elettronica

Body

Body

for V 35 Acc. Elettronica from 1980

Bevel gear

Bevel gear

for V 35 Acc. Elettronica from 1980

Headlights-horn

Headlights-horn

for V 35 Acc. Elettronica from 1980

Swing arm

Swing arm

for V 35 Acc. Elettronica from 1980

Electrical system

Electrical system

for V 35 Acc. Elettronica from 1980

Front/rear brake system

Front/rear brake system

for V 35 Acc. Elettronica from 1980

Handlebar - Controls

Handlebar - Controls

for V 35 Acc. Elettronica from 1980

Wheels

Wheels

for V 35 Acc. Elettronica from 1980

Front/rear shock absorber

Front/rear shock absorber

for V 35 Acc. Elettronica from 1980

Frame

Frame

for V 35 Acc. Elettronica from 1980

Intake-exhaust

Intake-exhaust

for V 35 Acc. Elettronica from 1980

Drive shaft

Drive shaft

for V 35 Acc. Elettronica from 1980

Gear box

Gear box

for V 35 Acc. Elettronica from 1980

Crankcase

Crankcase

for V 35 Acc. Elettronica from 1980

Cylinder head

Cylinder head

for V 35 Acc. Elettronica from 1980

Timing system

Timing system

for V 35 Acc. Elettronica from 1980

Clutch

Clutch

for V 35 Acc. Elettronica from 1980

Bendix starter motor

Bendix starter motor

for V 35 Acc. Elettronica from 1980

Oil pump

Oil pump

for V 35 Acc. Elettronica from 1980

Transmission cage

Transmission cage

for V 35 Acc. Elettronica from 1980

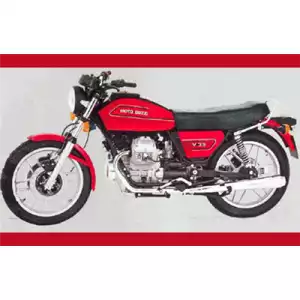

MOTO GUZZI LAVERDA SCARABEO V 35 Acc. Elettronica 1980
