1
Engine displacement
350
2
Model
V35
3
Year
1980
4
Trim
V 35 Acc. Elettronica
5
Parts Catalog
Front/rear shock absorber
6
Parts Diagram
Parts Catalog
Wheels
by
Frame
Front/rear shock absorber
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
47
1
Front fork
GU19490305
Not Available
2
Lower fork plate
GU39494002
Not Available
3
Vis
GU98620555
£2,94 Unit Price incl. VAT
4
Spacer
GU91181110
Not Available
5
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
6
Washer
GU62493200
Not Available
7
Upper plate
GU39493101
Not Available
8
screw
GU98620435
Not Available
9
Vis M10X40
GU98620540
£1,94 Unit Price incl. VAT
10
Bush
GU14516600
Not Available
11
Plug
GU17517700
Not Available
12
RH sleeve
GU195225001
Not Available
13
LH sleeve
GU195226001
Not Available
14
Vis sans tête
GU96508021
£24,73 Unit Price incl. VAT
15
Oil unload plug
GU98620312
Not Available
16
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
17
Joint spi
GU90403144
£16,56 Unit Price incl. VAT
18
Dust cover
GU53524540
Not Available
19
Sleeve
GU39525401
Not Available
20
Fork shock absorber
GU14526407
Not Available
21
Plunger
GU53527840
Not Available
22
Spring seat
GU53527940
Not Available
23
Fork spring
GU19526600
£22,82 Unit Price incl. VAT
24
Bague seeger
GU90271012
£0,89 Unit Price incl. VAT
25
Plug
GU39504501
Not Available
26
O-ring
GU90706202
Not Available
27
Stud bolt
GU19504800
£55,70 Unit Price incl. VAT
28
Cup
GU53527640
Not Available
29
screw
GU98623430
Not Available
30
Joint 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
31
Washer
GU95004208
£0,70 Unit Price incl. VAT
32
Nut
GU92602210
Not Available
33
RH headlight supp.
GU194961001
Not Available
34
LH headlight supp.
GU194962001
Not Available
35
O-ring
GU39492701
Not Available
36
Handlebar U-bolt
GU19500200
Not Available
37
VIS
GU98830430
£1,76 Unit Price incl. VAT
38
Cover
GU61514940
Not Available
39
Steering race
GU61515240
Not Available
40
Ball
GU92295704
Not Available
41
Shock absorber
GU23999290
Not Available
42
Spring
GU19552300
Not Available
43
Flat washer
GU95004215
£1,24 Unit Price incl. VAT
44
Rondelle
GU95100255
£7,60 Unit Price incl. VAT
45
Rondelle
GU95000208
£5,23 Unit Price incl. VAT
46
screw
GU98822416
£1,51 Unit Price incl. VAT
47
Bushing
GU10551600
Not Available

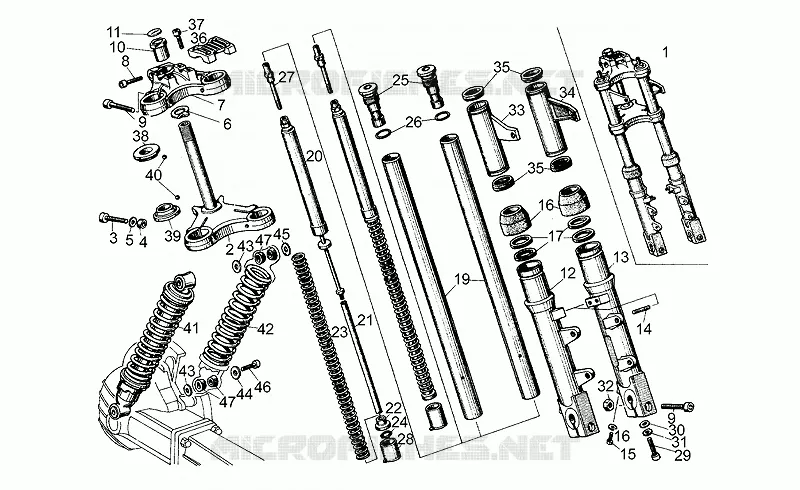

Find the detailed Front/rear shock absorber MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
