Engine displacement
350
2
Model
V35
3
Year
1980
4
Trim
V 35 Acc. Elettronica
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm
by
Front/rear brake system
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
30
30
31
32
32
33
34
35
36
37
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
59
60
60
61
62
63
64
65
1
Battery 12V-24Ah
GU28704552
Not Available
2
Float chamber
GU14707000
Not Available
3
Accumulator fixing wedge
GU14705350
Not Available
4
Bracket
GU19704800
£44,50 Unit Price incl. VAT
5
Capuchon
GU14717600
£3,04 Unit Price incl. VAT
6
Sheath
GU19718600
Not Available
7
HT coil
GU31716560
£162,73 Unit Price incl. VAT
8
screw
GU98052220
Not Available
9
Rondelle élastique 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
10
Nut
GU92602205
£0,96 Unit Price incl. VAT
11
ECU
GU19721400
Not Available
12
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
13
screw
GU98054212
£0,47 Unit Price incl. VAT
14
Rondelle 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
15
Nut
GU92602205
£0,96 Unit Price incl. VAT
16
Bosch rectifier
GU17704300
Not Available
17
Cover
GU14704205
Not Available
18
screw
GU98052245
Not Available
19
Rondelle 6,5x20x2
GU95100141
£1,02 Unit Price incl. VAT
20
Spacer
GU91180627
Not Available
21
Rondelle élastique 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
22
Nut
GU92602205
£0,96 Unit Price incl. VAT
23
Voltage regulator BOSCH
GU29703800
Not Available
24
Entretoise
GU91180605
£10,21 Unit Price incl. VAT
25
Rondelle élastique 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
26
screw
GU98054214
Not Available
27
Block
GU19105150
Not Available
28
Wiring
GU19722100
Not Available
29
Connector 6 vie
GU19721700
Not Available
30
Rubber spacer
GU19721500
Not Available
31
Connector 4 vie
GU17756200
Not Available
32
Pick-up
GU63721600
Not Available
33
Electrical system
GU19722200
Not Available
34
Connector 4 vie
GU17736300
Not Available
35
Stud bolt
GU19722600
Not Available
36
screw
GU98202510
Not Available
37
Rondelle évent.
GU95021105
£1,26 Unit Price incl. VAT
38
Wiring
GU19747400
Not Available
39
Connector 3 vie
GU61712500
Not Available
40
CONNECTEUR
GU61712600
£7,56 Unit Price incl. VAT
41
Caoutchouc
GU19007700
£4,44 Unit Price incl. VAT
42
Wire
GU19748200
Not Available
43
Wire
GU19748000
Not Available
44
Wire
GU19748300
Not Available
45
Cap
GU19707100
£12,65 Unit Price incl. VAT
46
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
47
Guard
GU19733350
Not Available
48
screw
GU98052440
£1,76 Unit Price incl. VAT
49
Vis M8X35
GU98052435
£2,04 Unit Price incl. VAT
50
Sparkplug cap
GU14717400
Not Available
51
Spark plug NGK B8ES
GU31717060
Not Available
52
Bosch alternator
GU17712400
Not Available
53
Hex socket screw M5x45
GU98620245
£0,91 Unit Price incl. VAT
54
Rondelle évent.
GU95021105
£1,26 Unit Price incl. VAT
55
Repairing kit
GU17719900
Not Available
56
Pick-up protection
GU19722500
Not Available
57
screw
GU98280412
Not Available
58
Starter motor Valeo
GU30730711
£557,15 Unit Price incl. VAT
59
Starter motor revision kit
GU14730570
Not Available
60
Washer
GU95004208
£0,70 Unit Price incl. VAT
61
Nut
GU92602208
Not Available
62
Rondelle
GU95004205
£1,13 Unit Price incl. VAT
63
Rondelle 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
64
VIS
GU98054216
£1,02 Unit Price incl. VAT
65
Ground-battery lead
GU19748400
Not Available

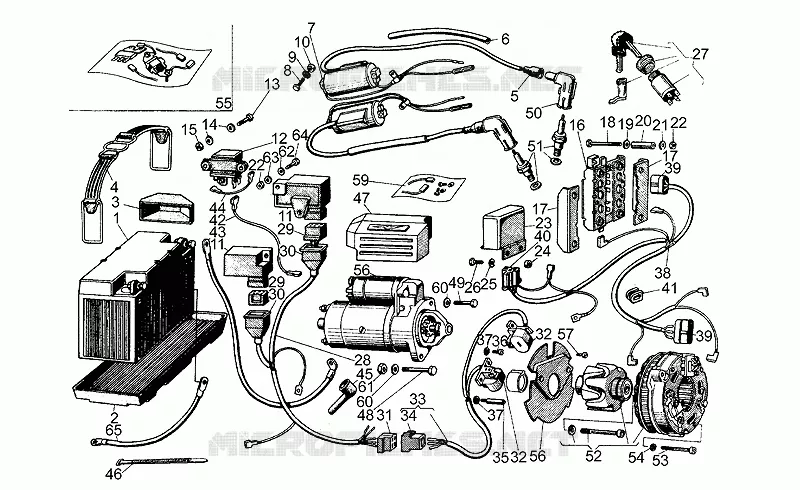

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
