1
Engine displacement
350
2
Model
V35
3
Year
1980
4
Trim
V 35 Acc. Elettronica
5
Parts Catalog
Headlights-horn
6
Parts Diagram
Parts Catalog
Bevel gear
by
Swing arm
Headlights-horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
46
46
46
47
48
49
49
50
51
52
53
1
Headlight
GU28740533
Not Available
2
Cap
GU19740458
Not Available
3
Light frame
GU19740454
Not Available
4
Light assembly
GU19740200
Not Available
5
Lamp 12V-45/40W
GU93450231
Not Available
6
Main switch
GU17740364
Not Available
7
Lamp
GU93450119
Not Available
8
Lampholder
GU17740405
£7,19 Unit Price incl. VAT
9
screw
GU14740355
Not Available
10
Washer
GU14740356
Not Available
11
Taillight assy
GU19740900
Not Available
12
Taillight
GU65740900
Not Available
13
Lampe (ou Ampoule) 12V/5-21W
GU93450224
£7,44 Unit Price incl. VAT
14
Taillight lens
GU65741700
Not Available
15
Fuse holder box
GU19743000
Not Available
16
screw
GU98202530
Not Available
17
Fuse 16A
GU17742550
Not Available
19
Rondelle
GU95000205
£0,96 Unit Price incl. VAT
20
Rondelle évent.
GU95021105
£1,26 Unit Price incl. VAT
21
Nut
GU92602205
£0,96 Unit Price incl. VAT
22
Horn
GU14743700
£37,94 Unit Price incl. VAT
23
Electrical system
GU19747100
Not Available
24
Wiring
GU19747300
Not Available
25
Earth cable
GU14748100
Not Available
26
Taillight wiring harn.
GU19747200
Not Available
27
Connector 12 vie
GU19723100
Not Available
28
Connector 3 vie
GU19723000
Not Available
29
Connector
GU19732400
Not Available
30
Cap
GU12735100
£2,12 Unit Price incl. VAT
31
Connector 4 vie
GU17756200
Not Available
32
Collier 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
33
Connector 4 vie
GU17736300
Not Available
34
Connector
GU61740551
Not Available
35
Rubber protection
GU35755780
Not Available
36
Cap
GU25741325
Not Available
37
Rubber spacer
GU17755300
Not Available
38
Cap
GU12717600
£2,22 Unit Price incl. VAT
39
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
40
Front turn signal support
GU19751300
Not Available
41
Sheath
GU19750800
Not Available
42
Front turn indicator
GU14750650
Not Available
43
Front turn indicator
GU14750650
Not Available
44
Lamp
GU93450129
Not Available
45
Sheath
GU93430307
Not Available
46
Ecrou
GU92602411
£1,07 Unit Price incl. VAT
47
Front turn indicator
GU14750650
Not Available
48
Front turn indicator
GU14750650
Not Available
49
Turn indicator lens
GU14753750
Not Available
50
Spacer
GU14753450
Not Available
51
Notched washer
GU95021110
Not Available
52
Flasher unit
GU17750520
Not Available
53
Block
GU17751200
Not Available

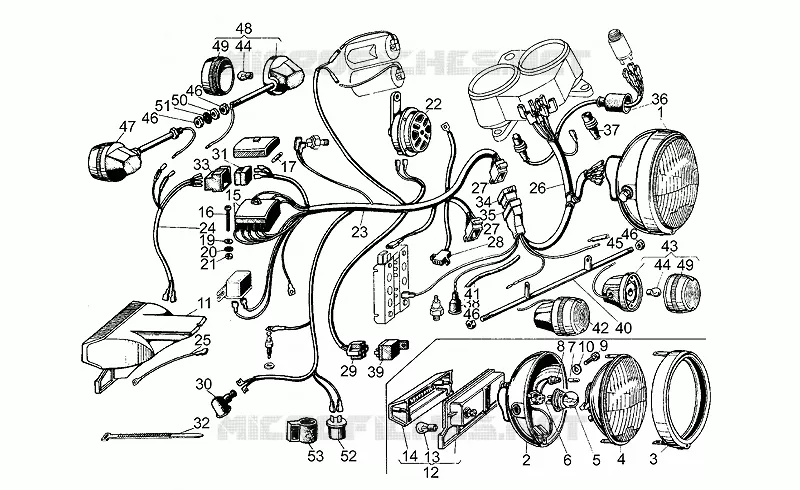

Find the detailed Headlights-horn MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
