Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Drive shaft
by
Oil pump
Central stand
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
1
Central stand
AP8146721
Not Available
2
Spring coupling screw
AP8580073
Not Available
3
Lateral stand
AP8146770
Not Available
4
Stand end stop
AP8144578
Not Available
5
Internal lateral stand spring
AP8163206
Not Available
6
Lateral stand spring
AP8163207
Not Available
7
Central stand spacer
AP8121617
Not Available
8
Gasket ring
AP8121638
Not Available
9
Roulette béquille
AP8120338
£4,32 Unit Price incl. VAT
10
Entretoise
AP8121012
£1,87 Unit Price incl. VAT
11
Ress.hél.cyl.tract.
AP8121014
£3,71 Unit Price incl. VAT
12
Plaque fix.ressorts
AP8121876
£4,62 Unit Price incl. VAT
13
Caoutchouc;
AP8144152
£6,19 Unit Price incl. VAT
14
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
15
Ecrou bas
AP8152001
£2,63 Unit Price incl. VAT
16
Vis bride
AP8152281
£1,80 Unit Price incl. VAT
17
Lateral stand screw
AP8152295
Not Available
18
Ecrou autobloqu.
AP8152301
£1,94 Unit Price incl. VAT
19
Vis
AP8150438
£18,83 Unit Price incl. VAT

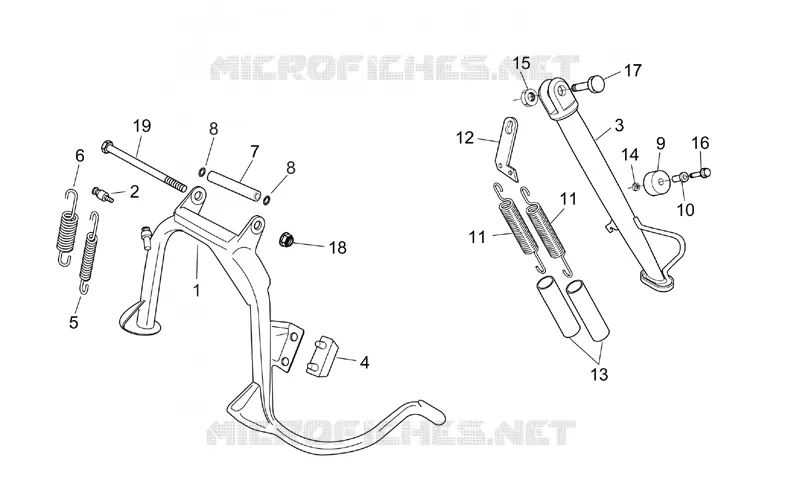

Find the detailed Central stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
