Parts Catalog
Connecting rod
6
Parts Diagram
Parts Catalog
Acc. - Various I
by
Camshaft
Connecting rod
1
2
3
3
4
4
4
4
5
6
6
7
8
9
10
11
11
1
Engine connecting element
AP8146812
Not Available
2
Frame coupling rod
AP8146811
Not Available
3
Silent-block, connecting rod
AP8120877
Not Available
4
Ecrou autobloqu.
AP8152301
£1,94 Unit Price incl. VAT
5
Entretoise
AP8121628
£28,30 Unit Price incl. VAT
6
Silent-block
AP8220617
Not Available
7
screw M12x170
AP8121165
Not Available
8
Frame pivot pin
AP8121336
Not Available
9
Pivot M12x270
AP8221227
£30,02 Unit Price incl. VAT
10
Ecrou autofr. bas
AP8150432
£2,18 Unit Price incl. VAT
11
Rondelle
AP8152441
£1,64 Unit Price incl. VAT

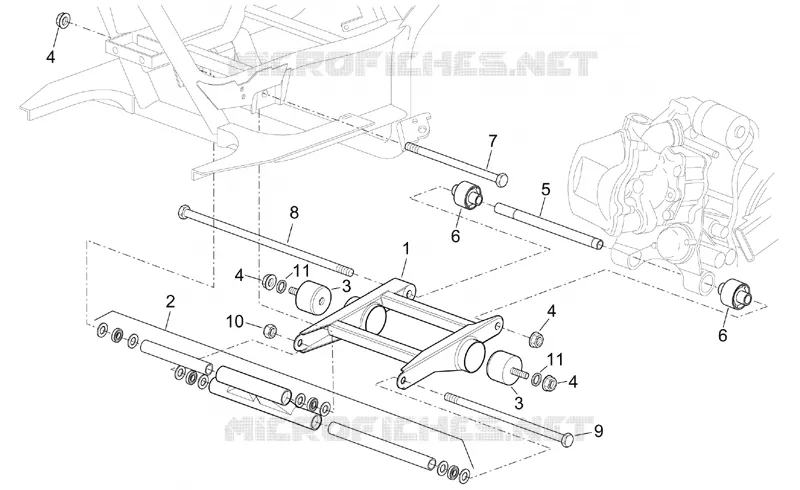

Find the detailed Connecting rod MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
