Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Rear body II
by
Chain tensioner
Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
12
13
1
Front wheel, grey
AP8108971
Not Available
2
Front wheel spindle
AP8125767
Not Available
3
Soupape tubeless;
AP8201546
£5,35 Unit Price incl. VAT
4
Tyre
0000000
Not Available
4
Front/rear tyre 110/80-16"
AP8109303
Not Available
5
Disque frein avant
AP8113697
£101,09 Unit Price incl. VAT
6
Vis bride
AP8152288
£2,20 Unit Price incl. VAT
7
Bague d'étanchéité
AP8125743
£33,32 Unit Price incl. VAT
8
Entraînement
AP8120865
£10,31 Unit Price incl. VAT
9
Renvoi compteur km
AP8102845
£22,91 Unit Price incl. VAT
10
Entretoise;
AP8225280
£17,53 Unit Price incl. VAT
11
Oil seal
AP8120621
Not Available
12
Bearing 15x42x13
AP8125812
Not Available
13
Spacer
AP8125811
Not Available

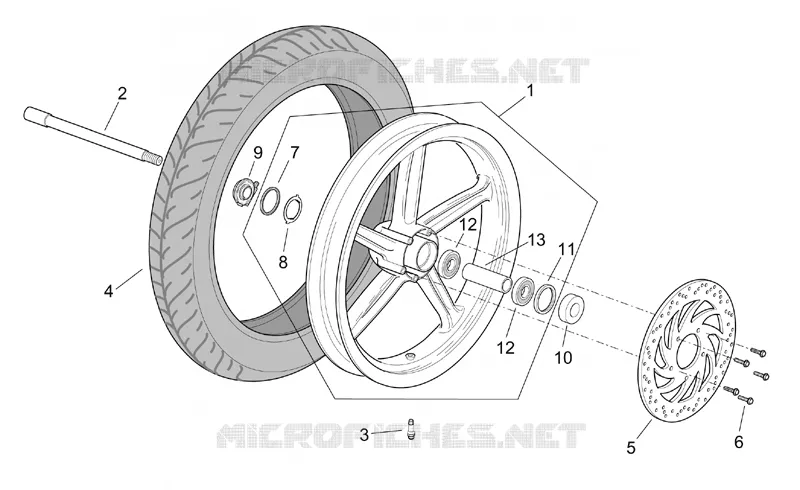

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
