Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Showa front fork - Hubs, sleeves
by
Front body - Front fairing
Fuel tank
1
2
3
4
5
6
7
7
7
7
7
7
8
9
9
10
11
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
26
27
28
29
30
30
31
1
Fuel tank
AP8168600
Not Available
2
Fuel pump
AP8176041
Not Available
3
Caoutchouc collecte essence;
AP8144187
£12,23 Unit Price incl. VAT
4
Fuel filler cap
AP8201757
Not Available
5
Tube dép.
AP8134815
£44,05 Unit Price incl. VAT
6
Fuel filter
AP8104406
Not Available
7
Collier
AP8101595
£3,97 Unit Price incl. VAT
8
Clip M6
AP8102376
Not Available
9
Ecrou autofr. bas
AP8150204
£1,88 Unit Price incl. VAT
10
Sonde niveau essence
AP8127545
£96,94 Unit Price incl. VAT
11
Self-locking nut M5
AP8152306
Not Available
12
Fuel pipe 5,5x10
AP8120952
Not Available
13
plate
AP8134526
Not Available
14
Vis bride
AP8152280
£2,48 Unit Price incl. VAT
15
Rondelle
AP8150015
£1,88 Unit Price incl. VAT
16
Ecrou autobloqu.
AP8152299
£1,88 Unit Price incl. VAT
17
Raccord complet;
AP8104071
£26,05 Unit Price incl. VAT
18
Hose clamp
AP8104072
Not Available
19
Collier clic
AP8101770
£12,56 Unit Price incl. VAT
20
Raccord à deux voies
AP8101944
£5,48 Unit Price incl. VAT
21
TUYAU
AP8220402
£28,99 Unit Price incl. VAT
22
Tuyau essence
AP8144633
£11,23 Unit Price incl. VAT
23
Caoutchouc corps filtre
AP8220370
£2,98 Unit Price incl. VAT
24
Collier
AP8102811
£2,51 Unit Price incl. VAT
25
"Raccord en ""T"""
AP8144303
£16,02 Unit Price incl. VAT
26
Rondelle
AP8150248
£0,98 Unit Price incl. VAT
27
Collier
AP8102378
£4,01 Unit Price incl. VAT
28
Soupape de retenue
AP8104251
£44,38 Unit Price incl. VAT
29
Crochet câble porte-casque
AP8221206
£30,73 Unit Price incl. VAT
30
Rondelle
AP8150255
£0,98 Unit Price incl. VAT
31
Eponge adhésive;
AP8117041
£32,51 Unit Price incl. VAT

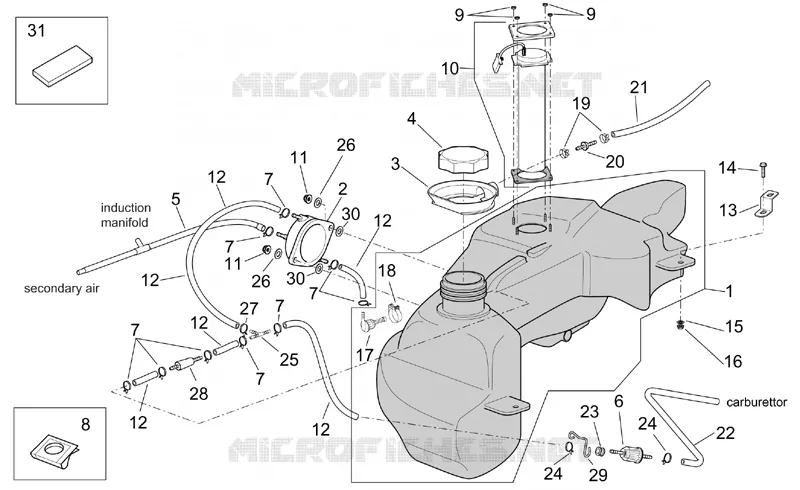

Find the detailed Fuel tank MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
