Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Handlebar
6
Parts Diagram
Parts Catalog
Carburettor III
by
Carburettor II
Handlebar
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
1
Miroir rétroviseur dte
AP8104491
£38,84 Unit Price incl. VAT
2
Miroir rétroviseur gche
AP8104492
£47,78 Unit Price incl. VAT
3
Handlebar
AP8118479
Not Available
4
Clip pour vis taraud
AP8201764
£3,84 Unit Price incl. VAT
5
Vis
AP8150277
£1,94 Unit Price incl. VAT
6
Ecrou autofr. bas
AP8150431
£1,94 Unit Price incl. VAT
7
Rondelle
AP8150020
£1,88 Unit Price incl. VAT
8
Vis guidon
AP8150088
£3,46 Unit Price incl. VAT
9
Ecrou autobloqu.
AP8152301
£1,94 Unit Price incl. VAT
10
Caoutchouc miroir
AP8144402
£1,33 Unit Price incl. VAT
11
Masse antivibratile guidon;
AP8104384
£16,09 Unit Price incl. VAT
12
RH slide piece
AP8144600
Not Available
13
Axe gauche
AP8144555
£5,70 Unit Price incl. VAT
14
Ecrou
AP8150026
£0,96 Unit Price incl. VAT
15
Vis
AP8150157
£1,27 Unit Price incl. VAT
16
LH rearview mirror
AP8104519
Not Available
17
Miroir rétroviseur dte
AP8104518
£47,78 Unit Price incl. VAT

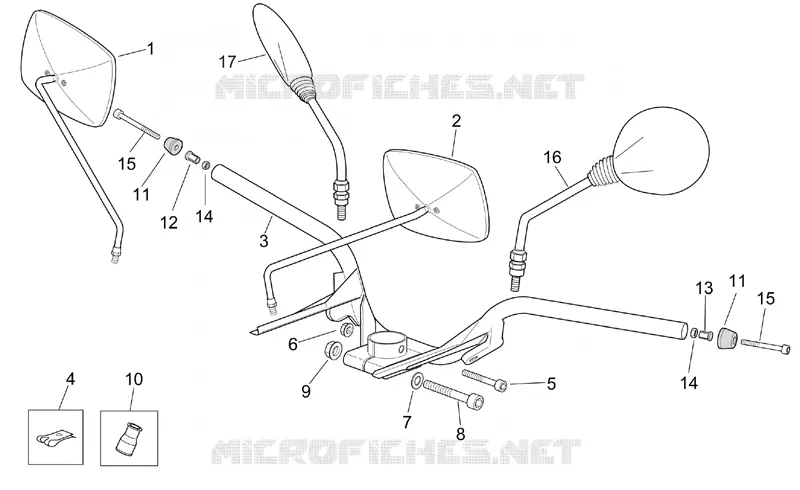

Find the detailed Handlebar MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
