1
Engine displacement
200
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Oil breather valve
6
Parts Diagram
Parts Catalog
Starter motor
by
Undersaddle

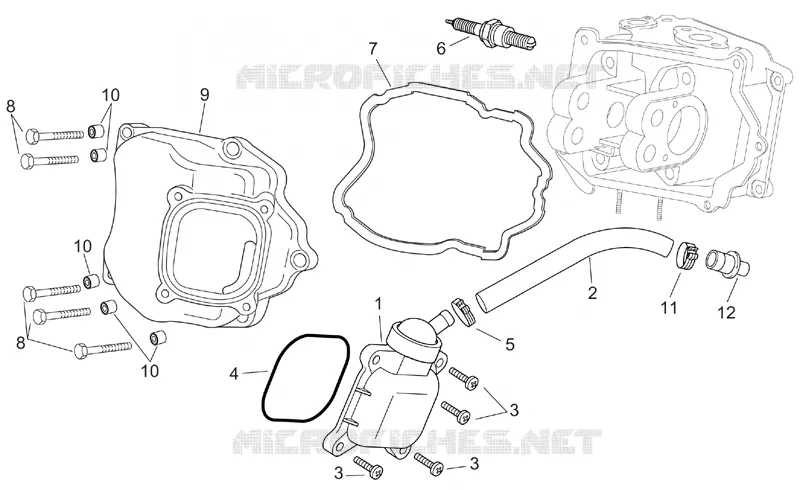

Oil breather valve
1
2
3
3
3
4
5
6
7
8
8
9
10
10
10
11
12
1
Oil breather valve
AP8580158
Not Available
2
Breather pipe
AP8580186
Not Available
3
screw
AP8580165
Not Available
4
Gasket
AP8580108
Not Available
5
Hose clamp
AP8144579
Not Available
6
Spark plug CR8EB
AP8570084
Not Available
6
Spark plug
AP8580168
Not Available
7
Gasket
AP8580042
Not Available
8
Screw w/ flange M6x30
AP8570007
Not Available
9
Head cover
AP8580041
Not Available
10
Pad
AP8570008
Not Available
11
Collier clic
AP8201169
£5,05 Unit Price incl. VAT
12
Raccord à deux voies
AP8102576
£7,45 Unit Price incl. VAT

Find the detailed Oil breather valve MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
